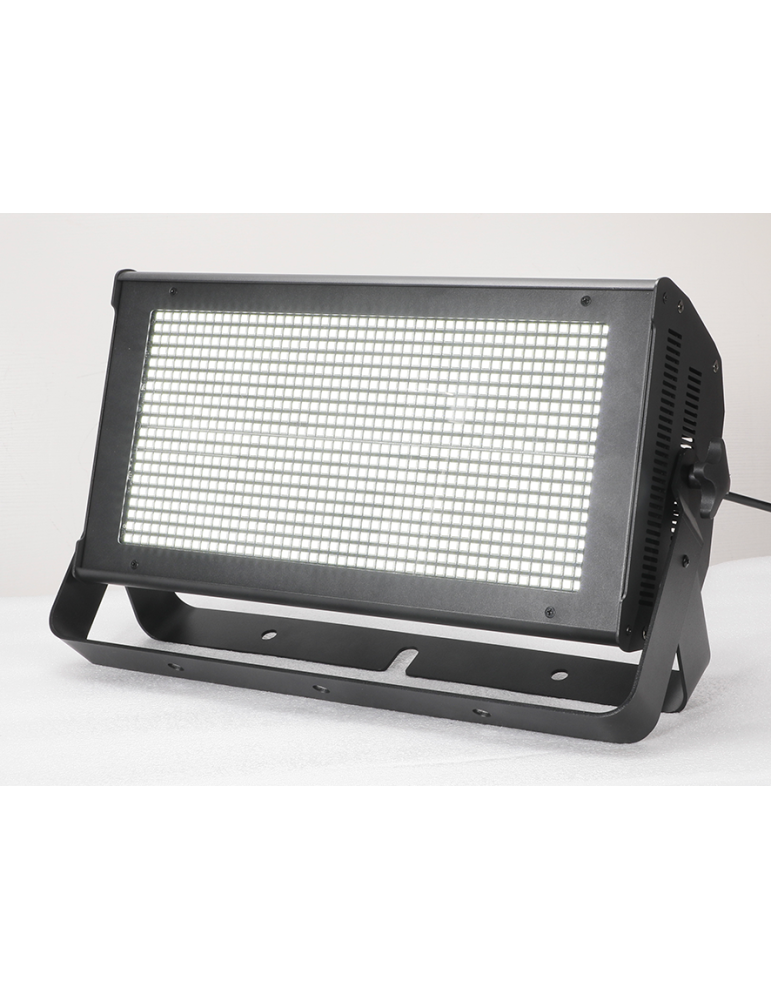

STROB.1000.MKII

🔷 Technical specifications

• Light source: 960 cool white LEDs (type SMD-5050, ~5700 K), divided into 8 zones, enabling pixel mapping for segmented effects.

• Beam angle: approx. 120° for wide diffusion.

• Strobe (frequency): adjustable from 1 to 25 fps (Hz) for a finely adjustable dynamic effect.

• Dimmer: 0-100% linear dimming, offering fluid control of intensity.

• Operating modes: Auto, DMX, Master-Slave, music mode (reactive to sound), manual.

• DMX channels: 3 / 4 / 7 / 10 channel options depending on configuration.

• RDM: compatible for remote configuration and diagnostics.

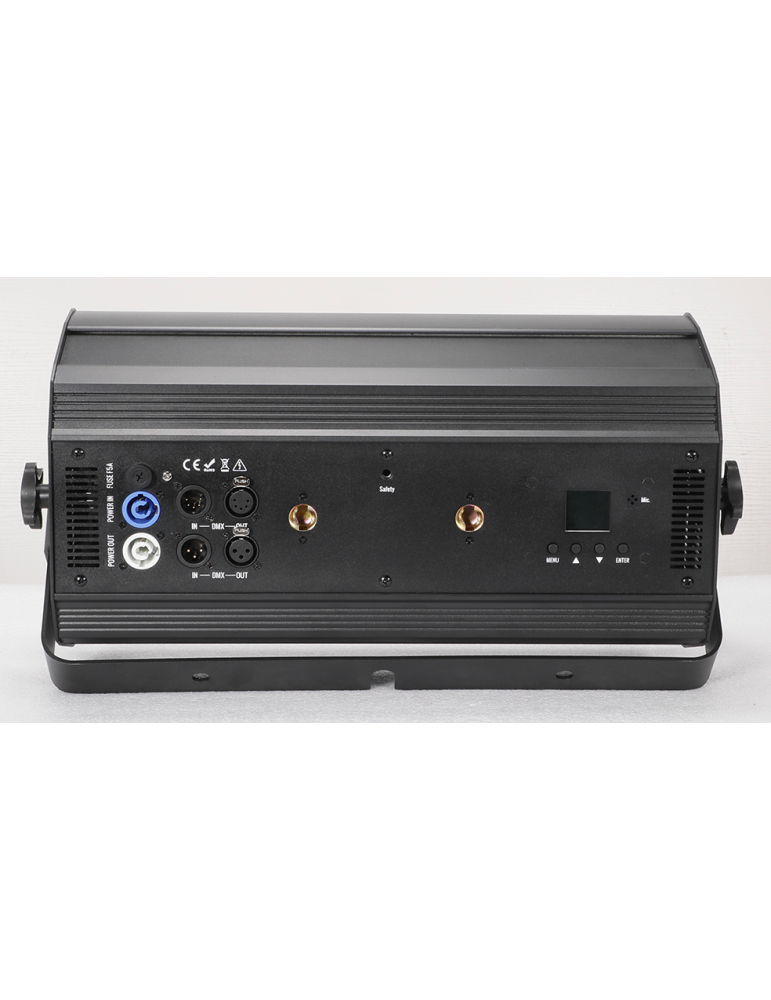

• Interface: LCD screen with 4 buttons, easy to use.

• Power consumption: approx. 330 W.

• Power supply: AC 100-240 V, 50-60 Hz, fuse F5A/250 V.

• Dimensions: ≈ 455 × 145 × 290 mm.

• Net weight: ≈ 8.5 kg.

• Warranty: 2 years.

🎛 Functions & uses

• Powerful stroboscopic effect: the 960 white LEDs offer remarkable luminous intensity, ideal for punctuating the highlights of a show.

• Pixel mapping over 8 zones: enables segmented effects (progressive dressing, sweeps, light waves, etc.) for sophisticated visual animation.

• Ultra-flexible control: from precise control via DMX (with RDM) to stand-alone modes (auto, sound, master-slave), it can be adapted to a variety of uses.

• Clear interface: LCD screen and buttons for quick, ergonomic on-the-spot adjustment.

• Compact & lightweight format: with its 8.5 kg and reasonable dimensions, it is easy to integrate or transport.

• Controlled efficiency: moderate power consumption (≈ 330 W) for high visual power.

✅ Advantages

📌 Summary

The Nicols STROB 1000 MKII is a top-of-the-range LED strobe, ideal for professional use where intensity, light zone segmentation and modularity are vital. Its power of 960 cool white LEDs, combined with pixel mapping over 8 zones, makes it particularly effective for spectacular visual effects. Despite the absence of RGB colouring, it remains a solid reference for demanding set designs.
