EKSPOLED CCT DMX blanc chaud/blanc froid

The Ekspoled 200 RGB CCT DMX is an ultra-versatile IP65 outdoor LED spotlight, combining powerful 200 W lighting, a wide 120° beam angle and 5-channel DMX control to mix RGB colours freely with warm and cool whites, for a perfectly controlled ambience indoors and outdoors.

Nicols
N.EKSPOLED.CCTDMX
6 Items
€382.50
Tax excluded
Quantity
En stock
  Return policy (edit with the Customer Reassurance module)
  For prices per large quantity, please contact our sales department!
  If you're interested in becoming a distributor/reseller, contact us!
Description

🔧 Specifications - Ekspoled 200 RGB + CCT DMX

Features Detail
Type Flood 200 W LED spotlight, RGB + cool white (6500 K) and warm white (3000 K)
LED & Driver 200 W LED (UCS512G6 or UCS512H4 chipset), Meanwell CCT RGB driver
Beam angle 120° - wide and uniform for large surfaces
Luminous flux ≈ 8,200 lux at 1 m - powerful light even outdoors
DMX and control 5 channels (red, green, blue, cool white, warm white); address assignable via DMX Tool 2 or 3
Connection PowerCON TRUE1 in/out + XLR 3-pin DMX in/out (both IP65)
Power supply 240 V AC (cable not included)
Protection rating IP65 - indoor/outdoor use, weatherproof
Noise level Silent - passive ventilation, noise-free operation
Dimensions ≈ 480 × 379 × 63 mm (or 475 × 490 × 550 mm depending on source)
Weight ~5 kg
Certification CE, RoHS, ISO 9001
Warranty Approximately 2 years depending on distributor

🧩 Functions and use

  • RGB + warm/cool white option: mixes bright colours and white temperatures via DMX for a customised ambience (trade shows, events, architectural)

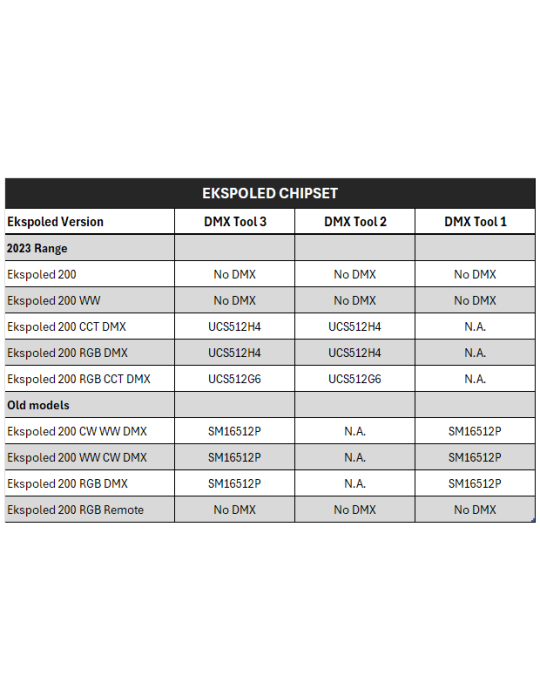

  • Assignable DMX control: you can define the addressing channels using a DMX Tool (version 2 or 3) depending on the configuration of the chipset used (UCS512G6/H4)

  • Robust hardware & professional mounting: this compact flood uses Seetronic connectors (PowerCON + XLR IP) and a robust aluminium chassis with adjustable mounting.

  • No active ventilation: perfectly silent operation, compatible with quiet areas or museums.


✅ Highlights

  • Visual fluidity and colourimetry: 120° of diffusion combined with CCT/RGB control for very homogenous or dynamic atmospheres.

  • Simple daisy-chain installation thanks to PowerCON in/out connectors.

  • IP65 protection for prolonged use in outdoor environments.

  • Flexible control with 5 DMX channels, RGB mode + warm/cool white.

  • Compact size (5 kg) easy to install in hoppers, tracks or stands.


📋 Usage & Recommendations

  • Architectural or ambient lighting: stands, halls, facades, galleries.

  • CCT RGB DMX version available for colour modulation.

  • Can be used in series via PowerCON TRUE1 in/out connections.

  • DMX programming required: provide appropriate DMX Tool (2 or 3) depending on chipset version.

Product Details
N.EKSPOLED.CCTDMX
6 Items

Data sheet

  • Asia
  • Alloy
  • 3 months
  • 2 years

Specific References

  • 3510361608977
