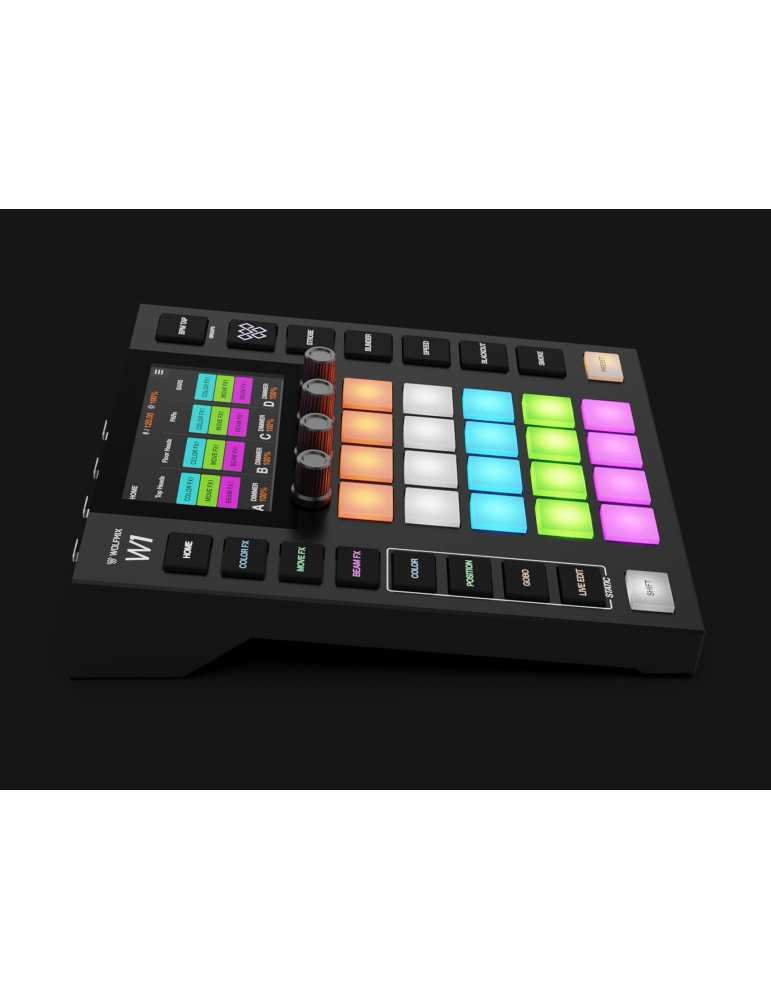

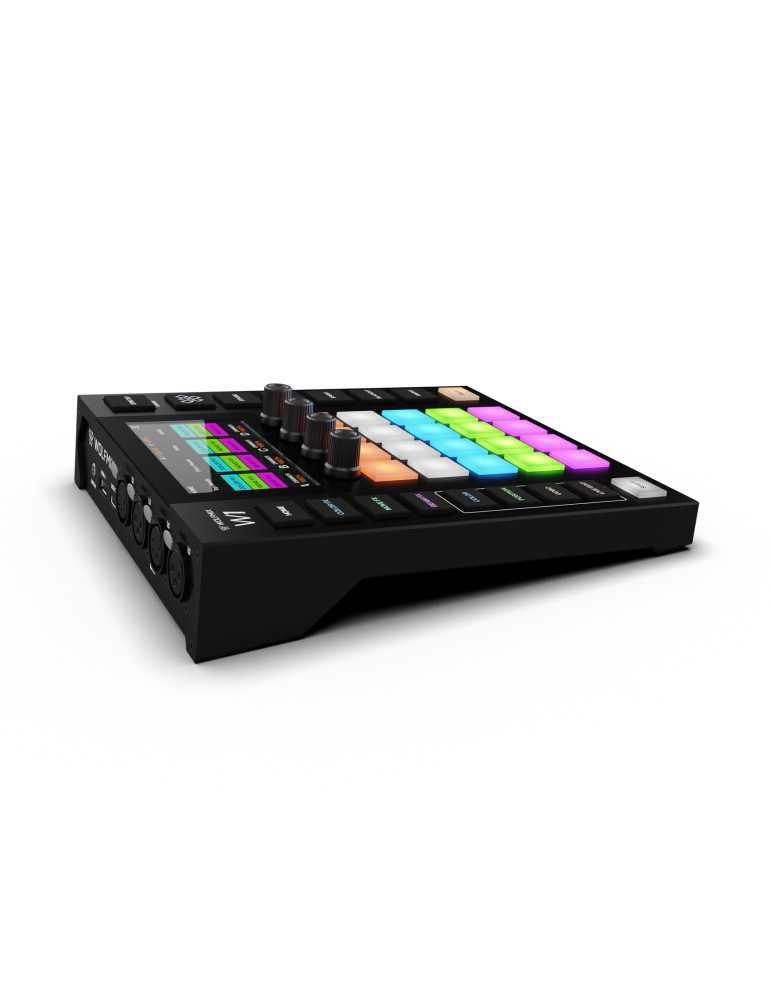

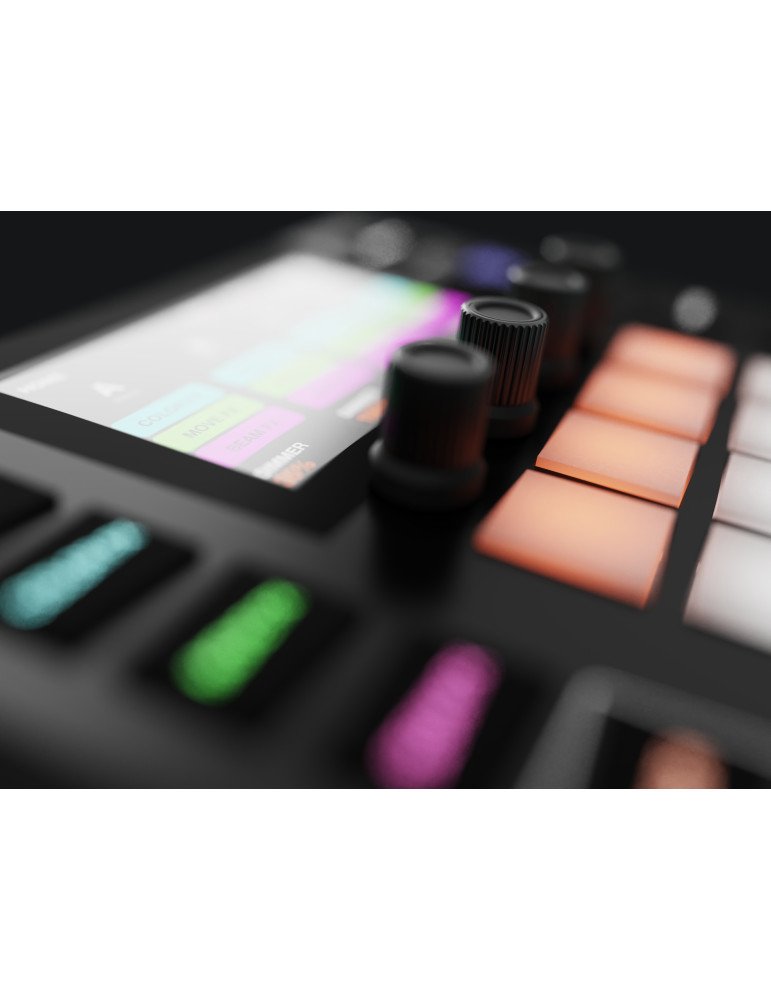

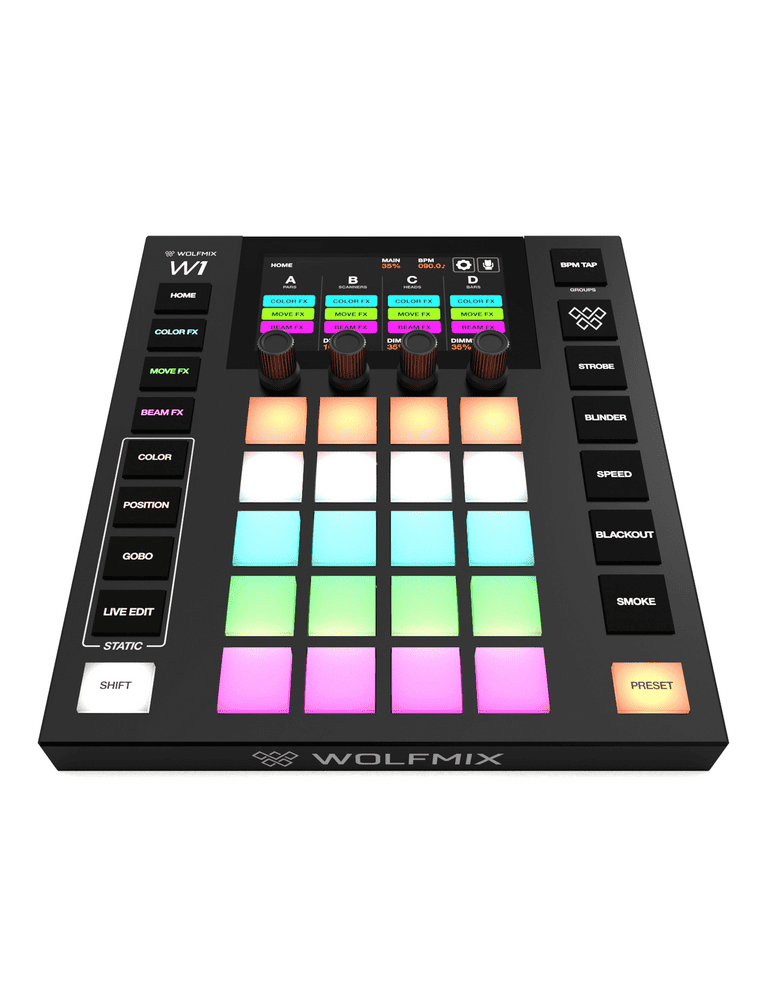

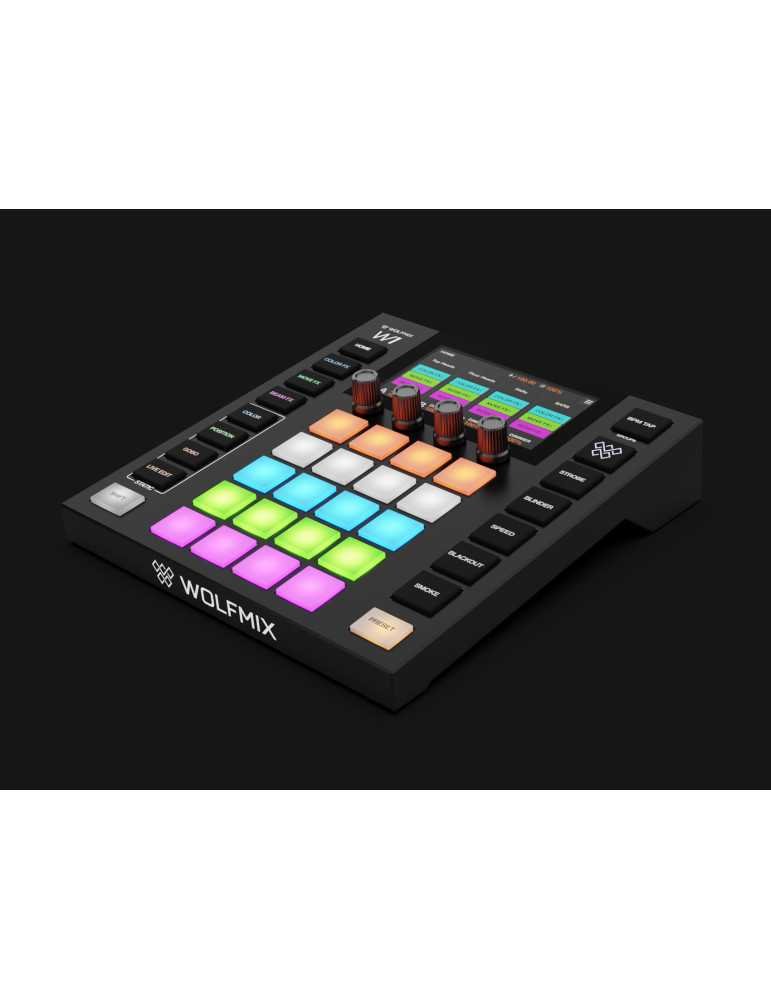

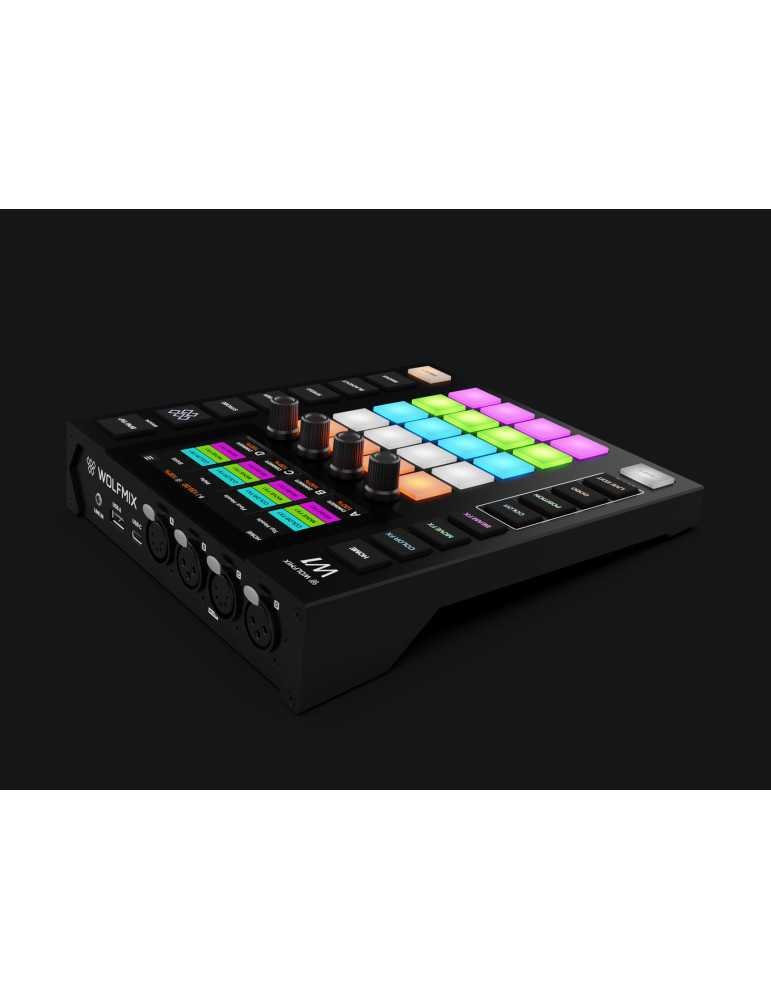

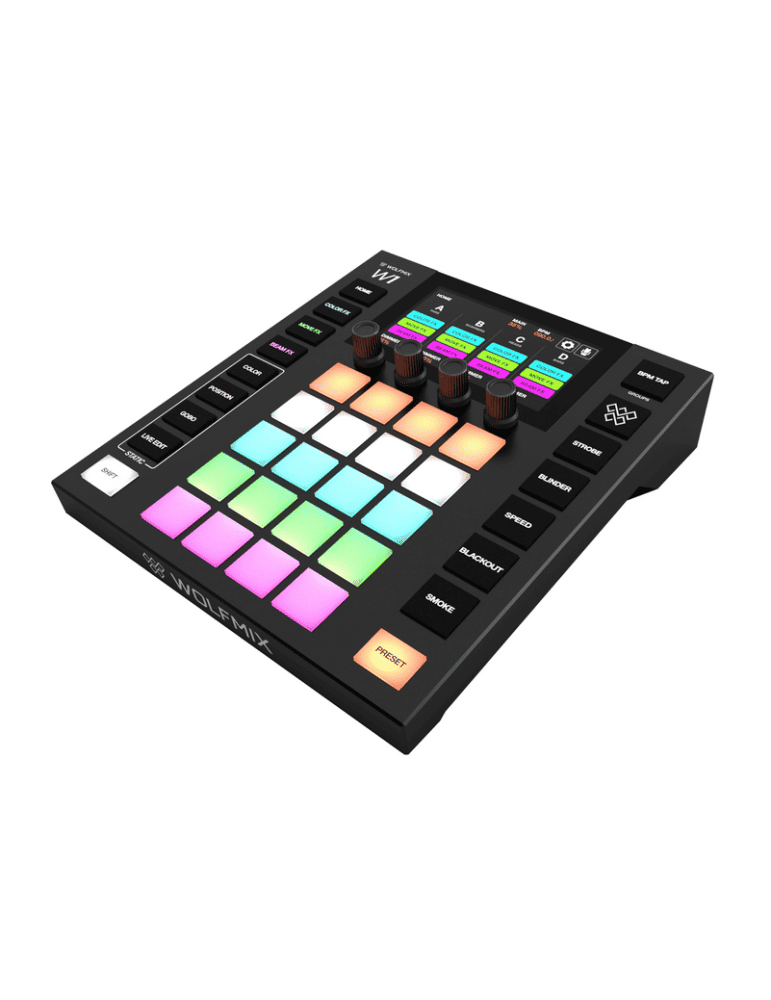

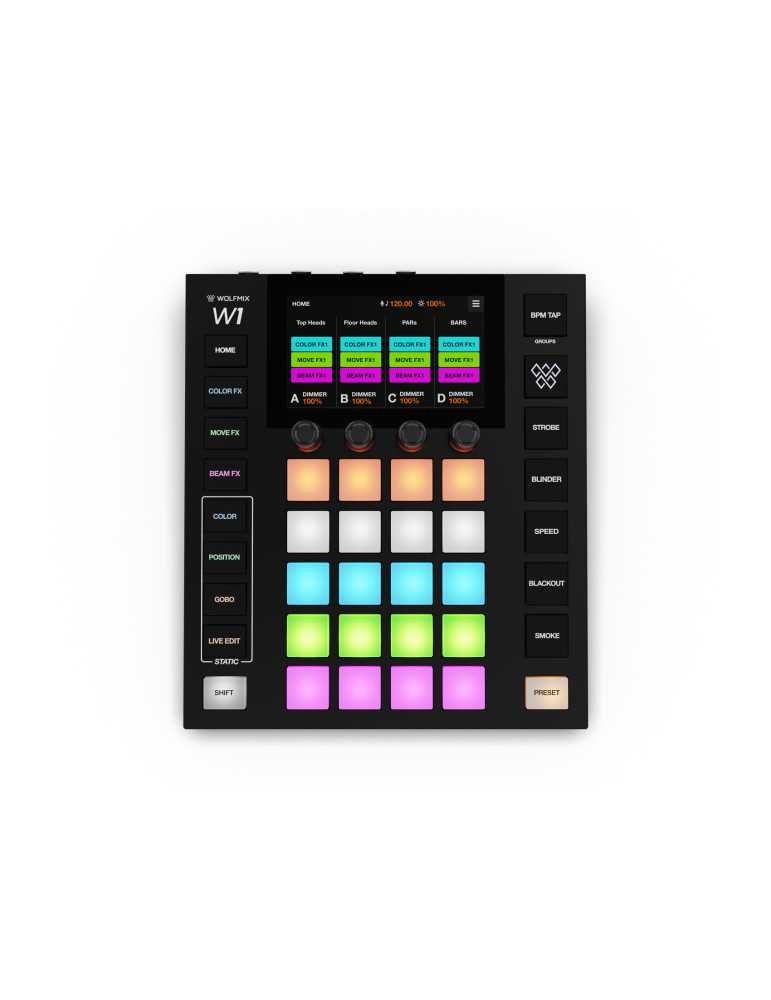

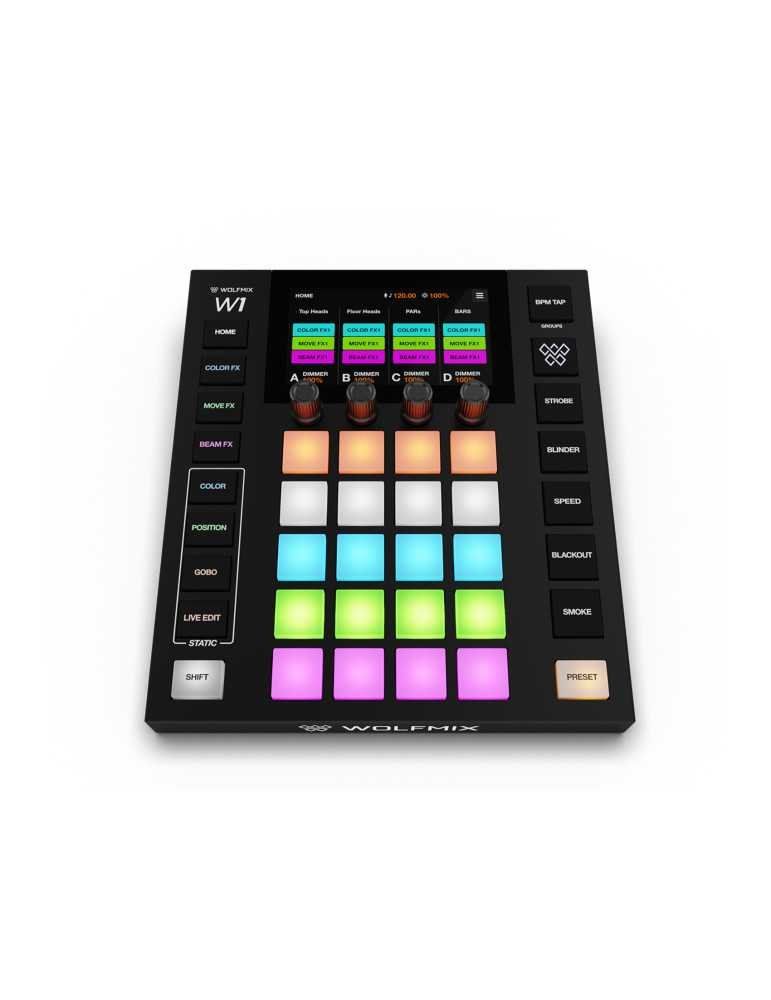

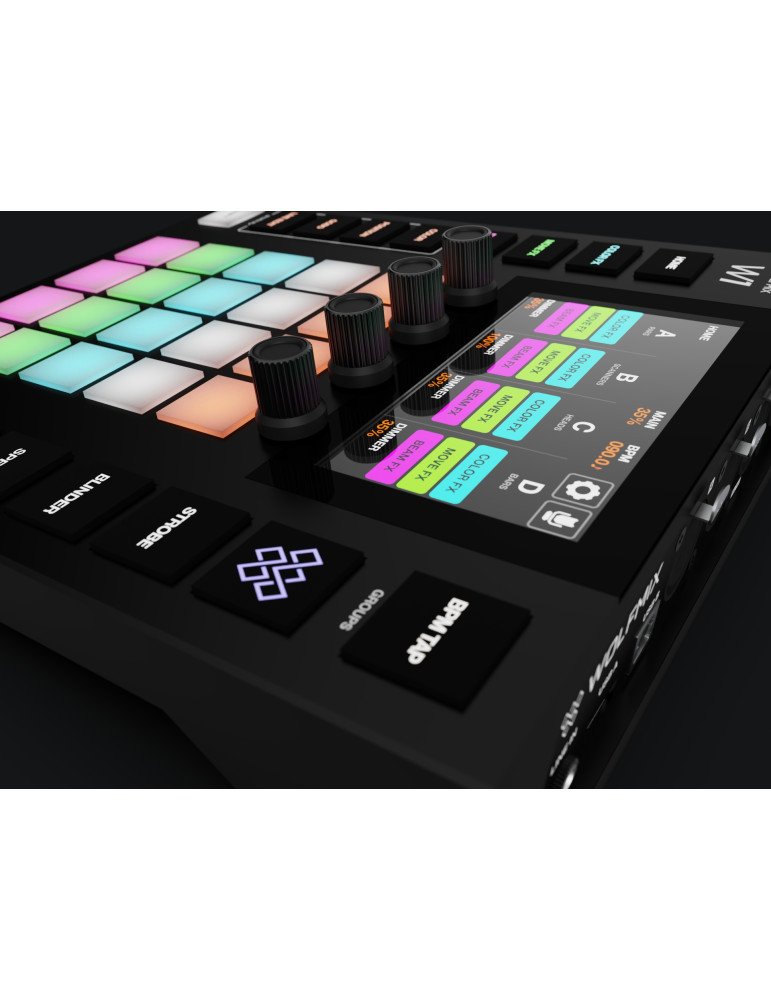

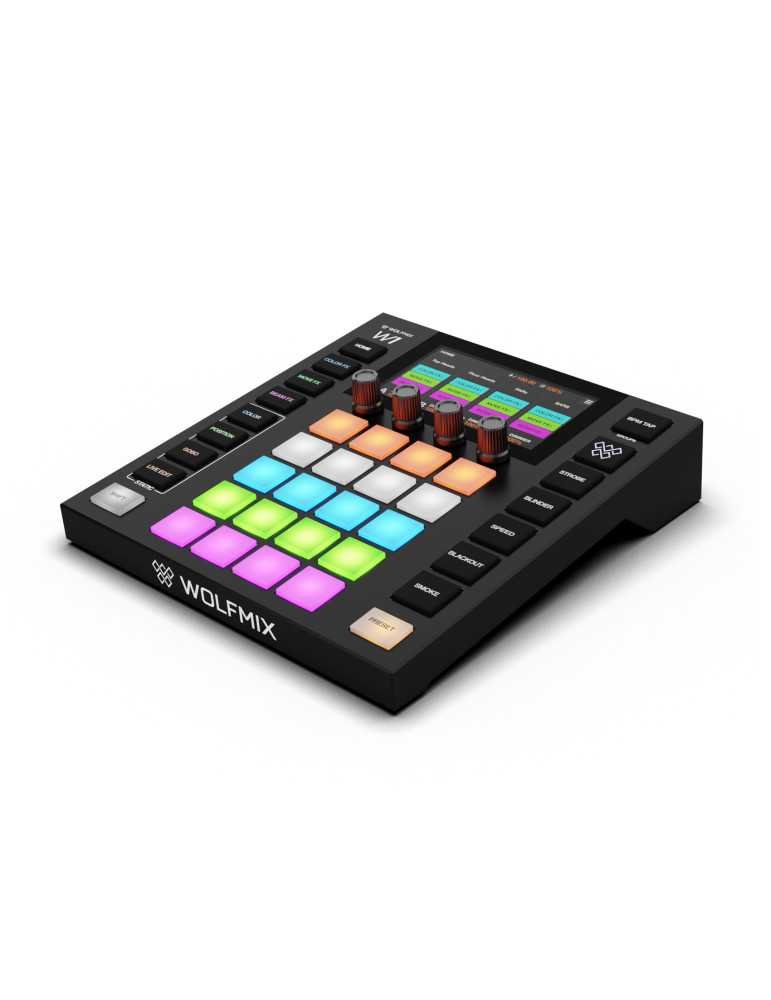

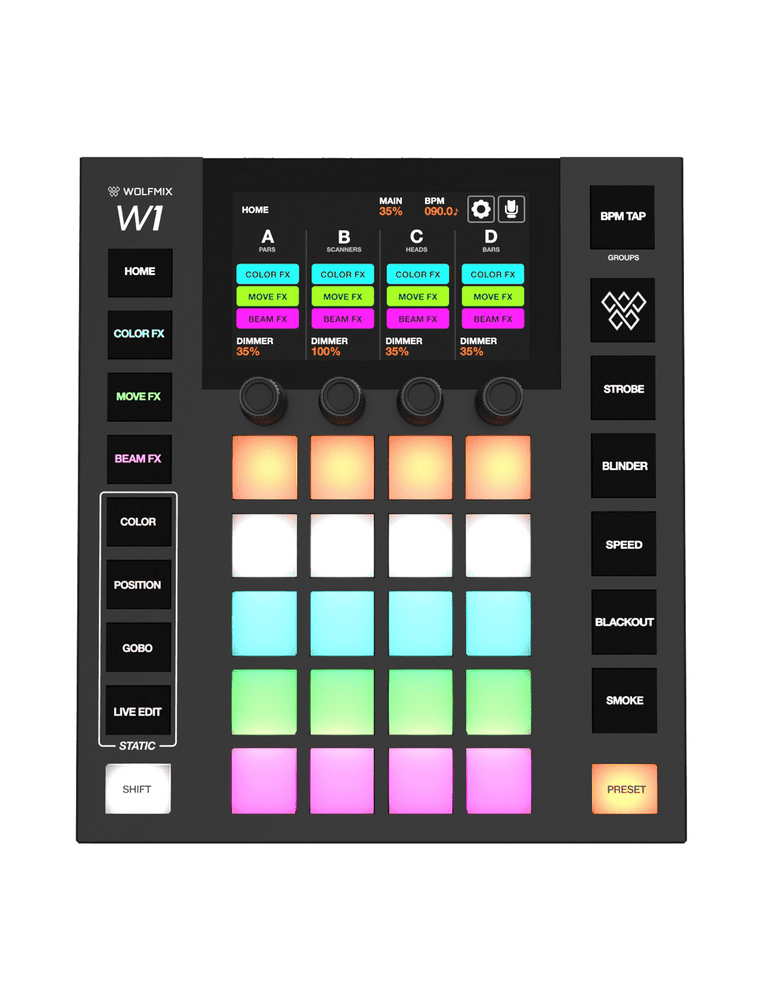

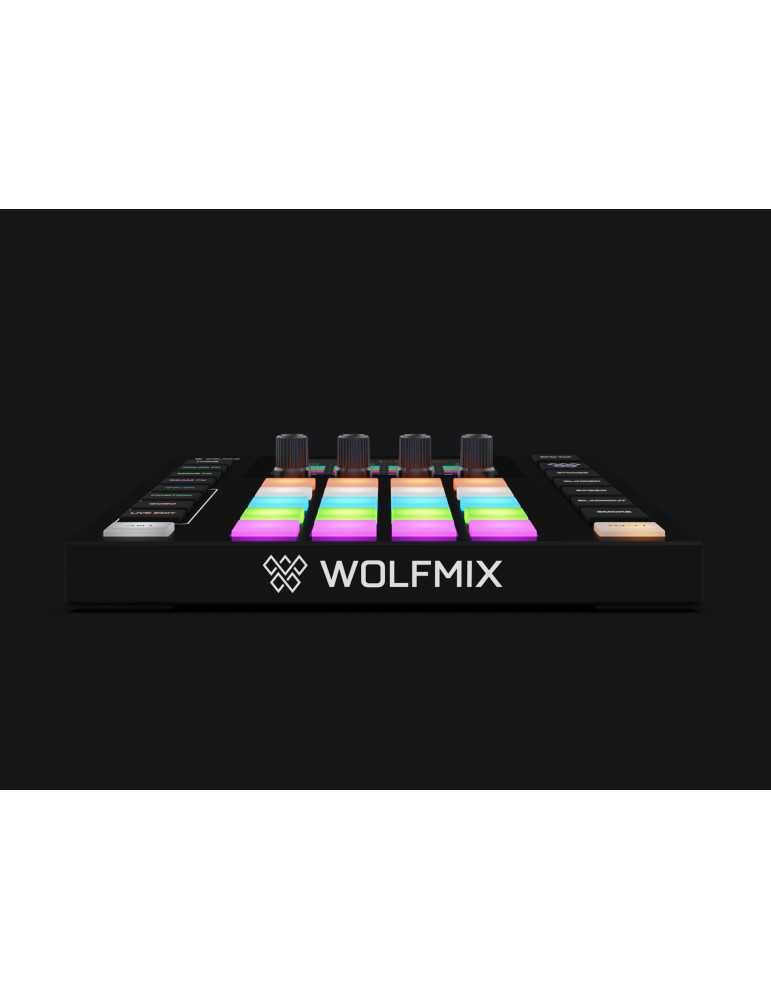

WOLFMIX W1 MKII

Technical specifications

- LED colour backlight

Processing
- 220Mhz CPU with ARM core
- 8MB RAM
- 16MB Flash

Audio
- Omnidirectional electret microphone
- 3.5 mm jack line input
- Analogue adaptive peak detector

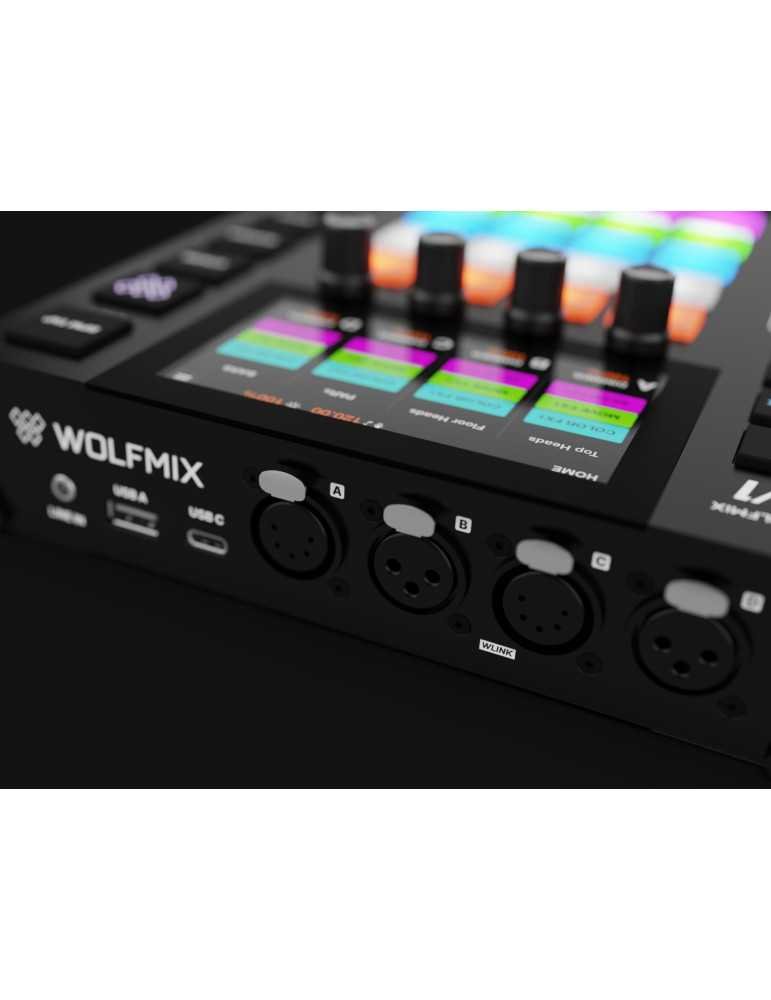

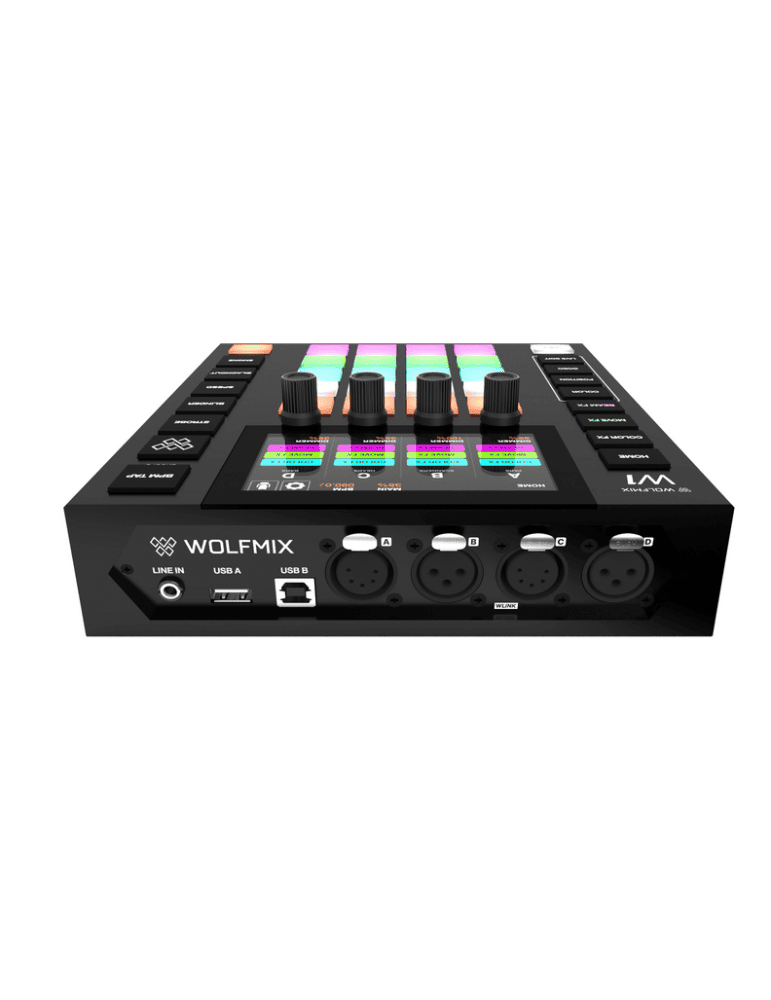

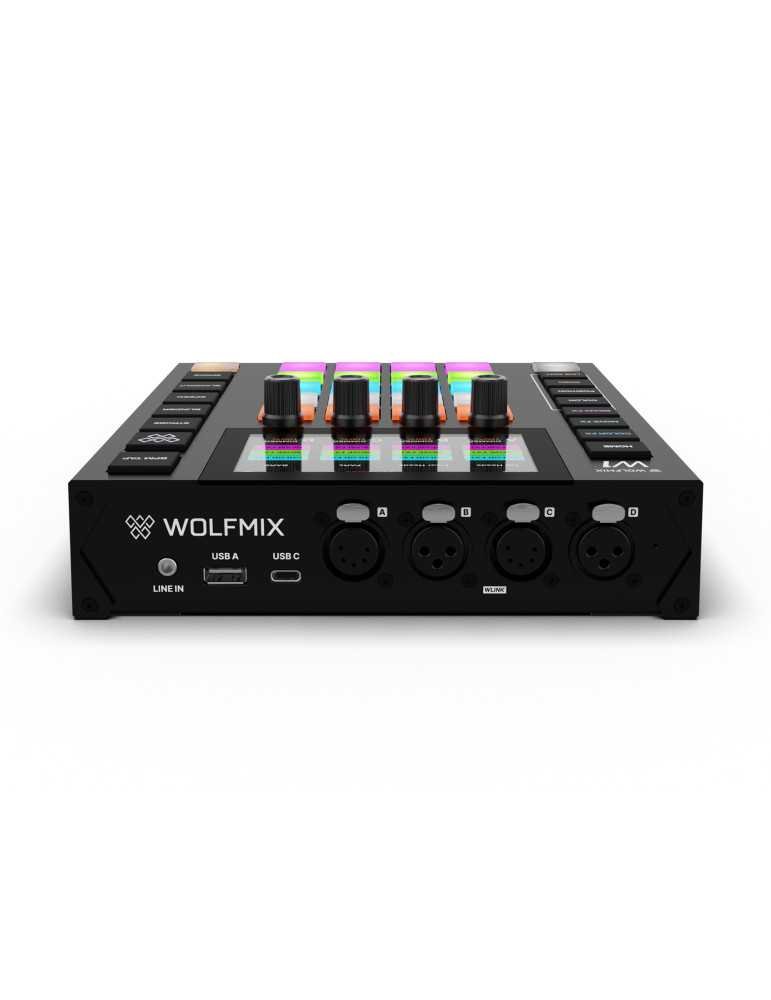

DMX

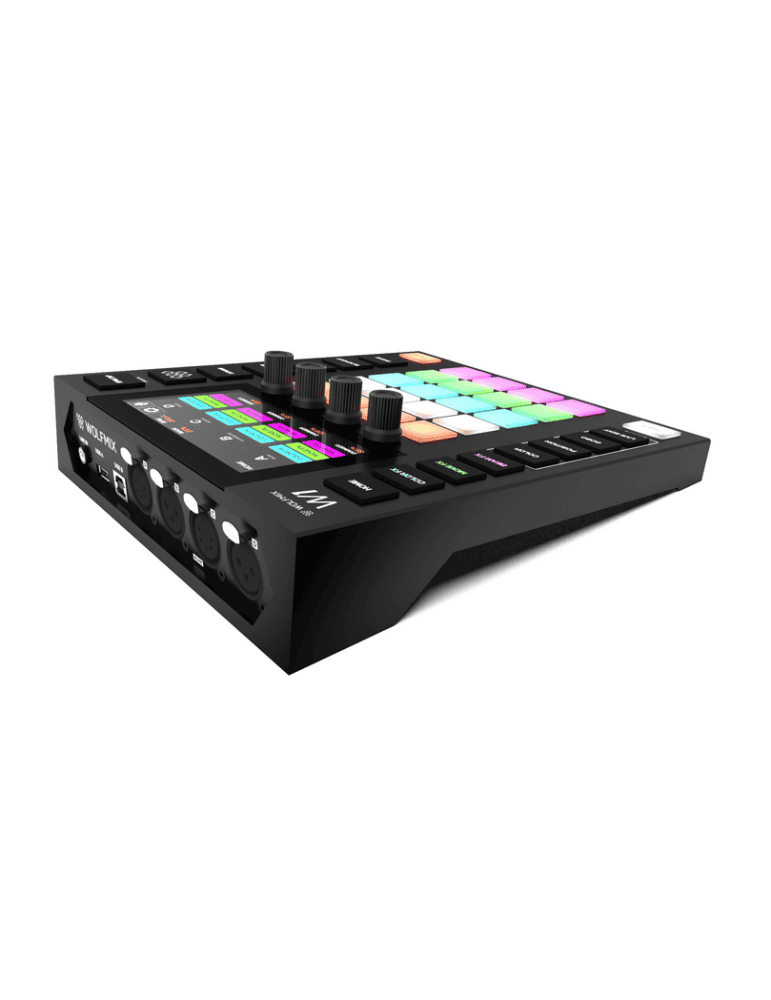

- 2 x 3-pin XLR DMX OUT connectors
- 1x XLR 5-pin DMX OUT connector
- 1x XLR 5-pin DMX IN/OUT connector with WLINK
USB
- USB-B connector - 900ma required (USB3 standard)
- USB-A connector (MIDI/MSD)
- High-speed USB communication

Features

- Stand-alone (no computer required)
- Compatible with any DMX device
- Up to 4 DMX universes (2048 channels, add-on required for universes 3 and 4)
- Up to 680 fixtures and beams
- Up to 50 fixture types
- Up to 5000 fixture functions (colour/gobo etc...)
- 8 projector groups
- 6 projects
- Over 15,000 fixtures available (over 3,500 on the controller)
- DMX address, fixture control and group configuration
- Use as a DMX splitter with DMX universe mapping
- Colour effects module with 8 effect types and 16 definable colours
- Motion effects module with 8 types of effects
- Beam effects module with 8 types of effects
- 6 flash buttons to control special effects, strobe, blinder, speed, blackout and smoke
- Static colour palette with 10 user-definable colours per group and gradient control
- Static position palette with 5 user-definable positions per group and crossfade control
- Gobo palette with 5 user-definable gobos per group
20 named live edit buttons with flash trigger mode and 'Park' function
- 100 named presets for storing snapshots with hold and fade times
- Preset playlist - all presets or per page of 20 presets
- Group and general dimmers with rotary encoder acceleration
- FLASH, FULL and Blackout groups
- 16-bit Pan/Tilt control
- Multi-beam LED bar control
- Synchronisation of effect with musical pulse from microphone or line input
- Effect synchronisation with BPM from Ableton Link, OS2L or BPM TAP
- Effect speed, phase, order, size, fade, fan and flicker
- Real-time reference point control for motion effects

Speed control and global motion freeze
- DMX input mapping for group dimmers and patching to output channels (add-on required)*
- WLINK - synchronisation with another Wolfmix controller (add-on required)*

Built-in tools

- Projector Builder
- Projector calibration tool, to limit the surface area of moving projectors
- Touch X-Y positioning grid
- RGBW touch colour selector
- 8-step real-time sequencer for creating movement and beam effects
- Live view of DMX levels, with default override and DMX channel tester
- Beam editor to replace Min and Max values used in generated effects
Other outstanding features
- RGB, white, amber and UV calibration and mixing with automatic fixed colour wheel equivalence
- Automatic comparison of similar gobos in different camera types
- Flash release and preset times
- FLIP function, to reverse the order of the beams
- SPLIT function, to separate multi-effect bars
- Lock the entire controller, or lock editing with a password
- Backup projects and installations with the WTOOLS application
- Offline 3D visualisation with Easy View and WTOOLS on USB (add-on required)*.
- Automatic recovery of the active project (no manual backup required)
- Import different projector configurations into the same project
- Starts up in less than 2 seconds. Starts sending DMX in less than 1 second
- Factory firmware recovery mode in the event of a problem
* some features require an additional purchase available via the WTOOLS application
