Network performance to fuel your creativity.
Optimize your lighting installations with the DMX Node 8, an Ethernet-DMX gateway designed for demanding professionals. Reliability, quick deployment, and flexibility make this node an indispensable ally for modern lighting systems
Return policy (edit with the Customer Reassurance module)
For prices per large quantity, please contact our sales department!
If you're interested in becoming a distributor/reseller, contact us!

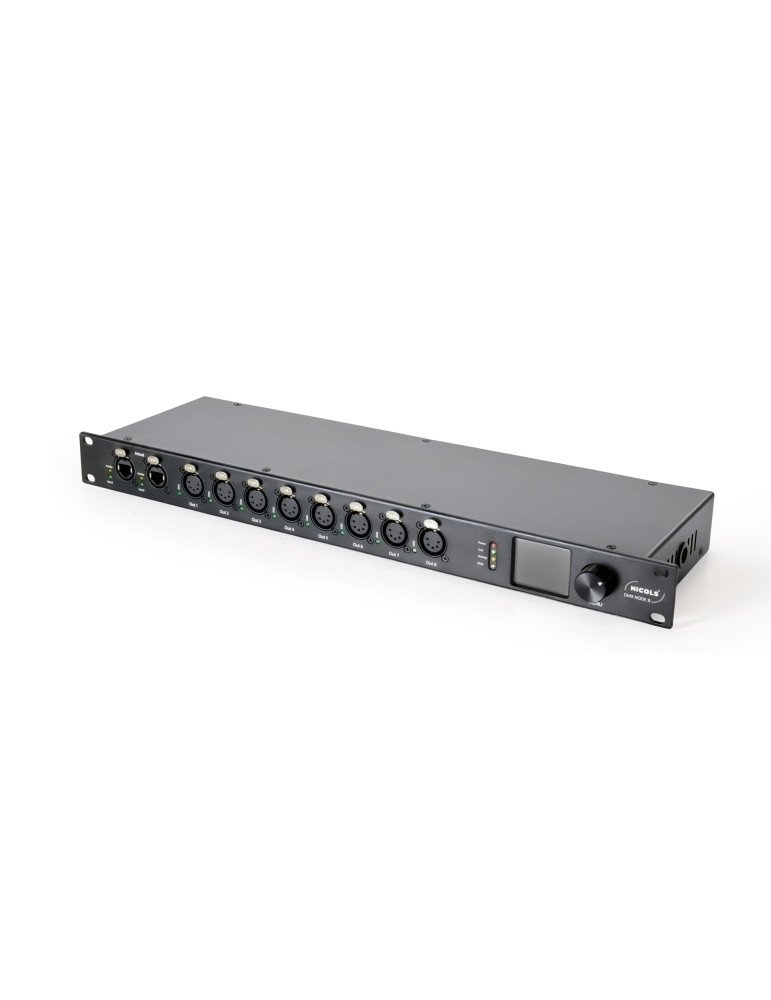

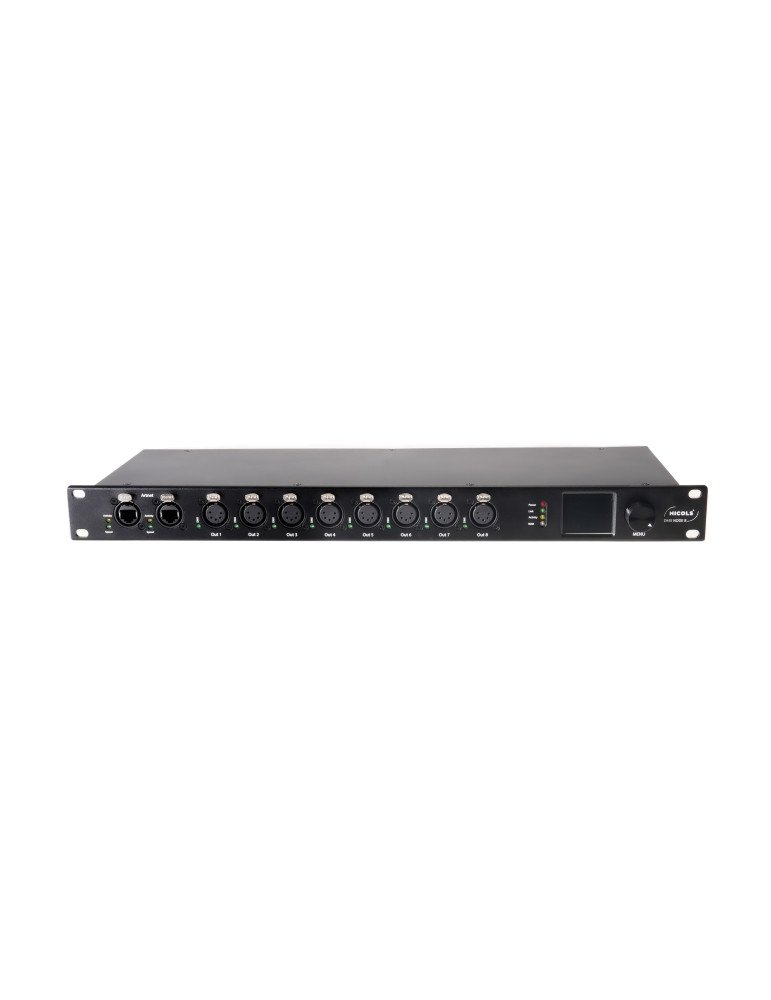

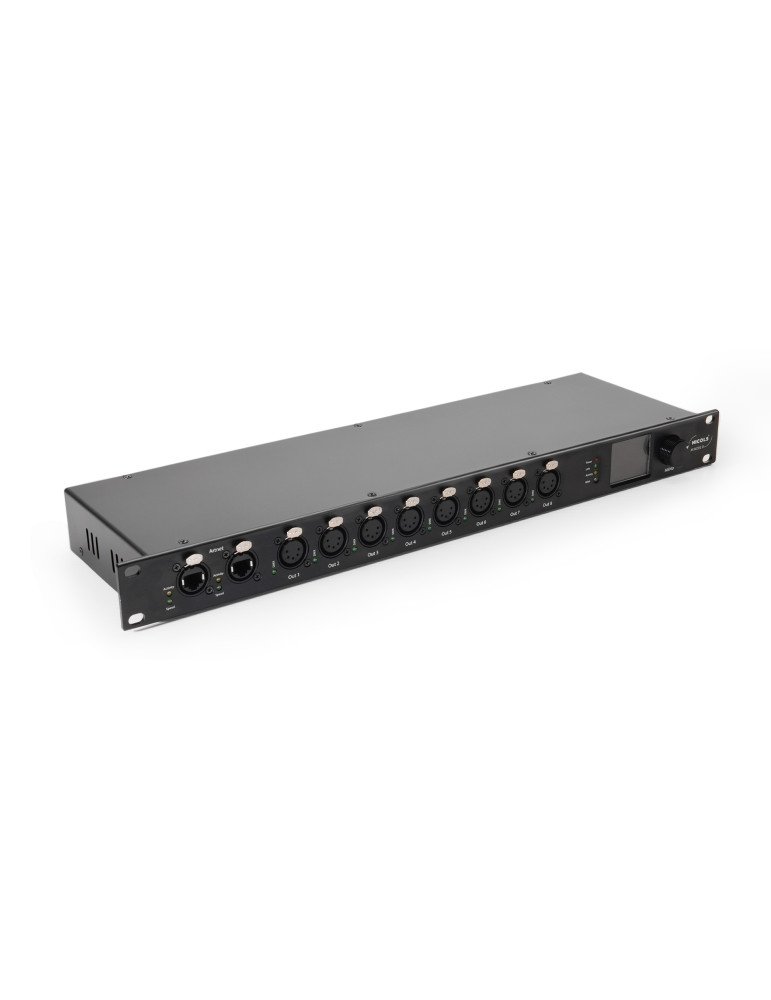

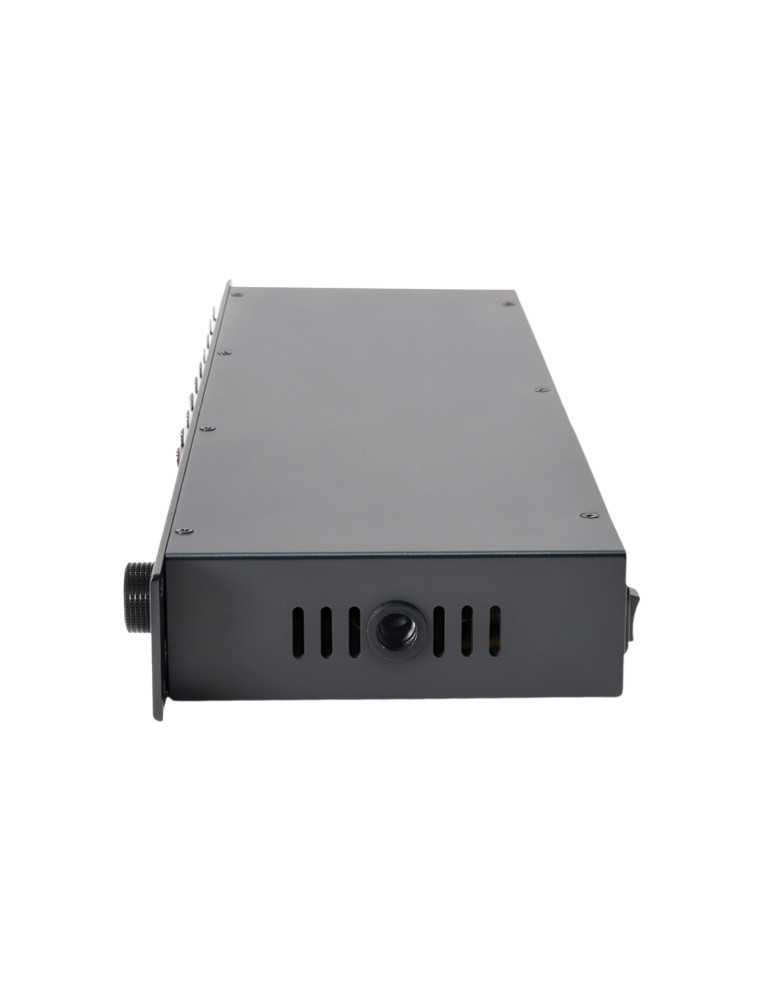

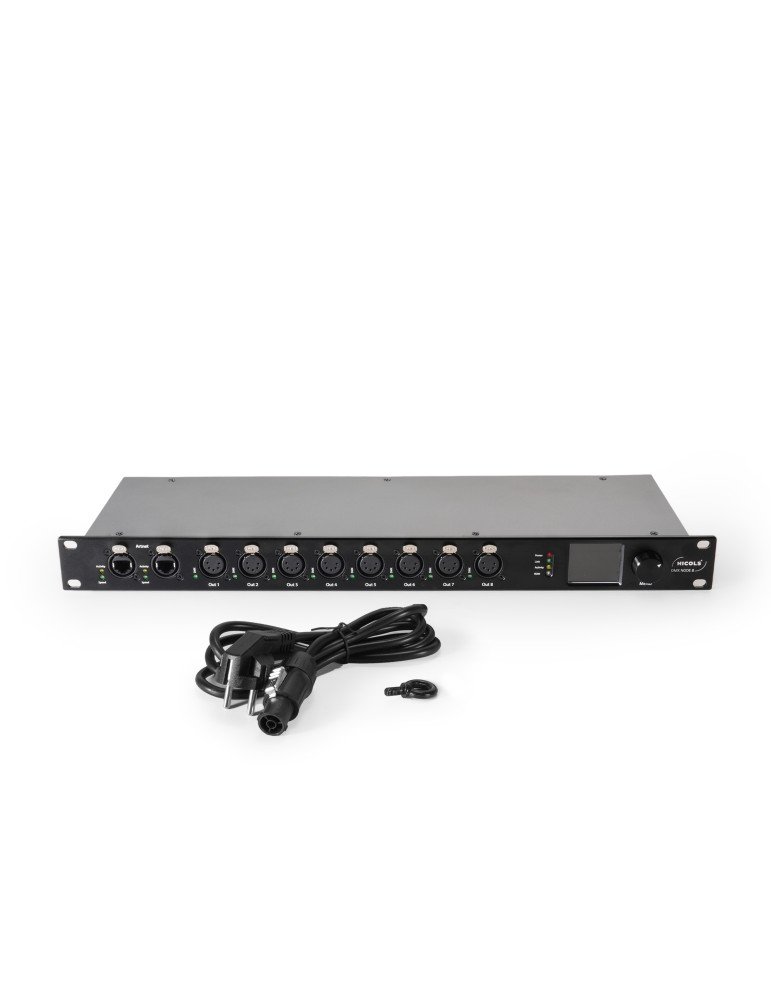

A high-end DMX network controller for professional installations
The DMX Node 8 is a next-generation Ethernet-to-DMX bridge designed for lighting technicians and integrators who demand reliability and performance. With 8 independent universes, it can control up to 4,096 DMX channels in a single 1U rack.
Supported protocols: Art-Net, sACN, RDM, DMX
Art-Net ↔ DMX Bidirectional Conversion
Network speed 1 Gbps (1000 Mbps)
Universes 8 independent DMX inputs/outputs
Connectors 8 × 3/5-pin XLR OUT + 2 × RJ45 IN/OUT
Optical isolation on all output ports
LCD screen with an encoder wheel for quick configuration
IP Configuration Via LCD screen or web interface
Power supply AC 100-240V 50-60Hz
Power consumption 10 W
Dimensions 482 × 143 × 44 mm (format 1U rack)
Weight 2.2 kg
Operating temperature -5 °C to +40 °C
