copy of RAW 10

Name: copy of RAW 10
Brand: Unity lasers
SKU: PA.RAW20.FB4

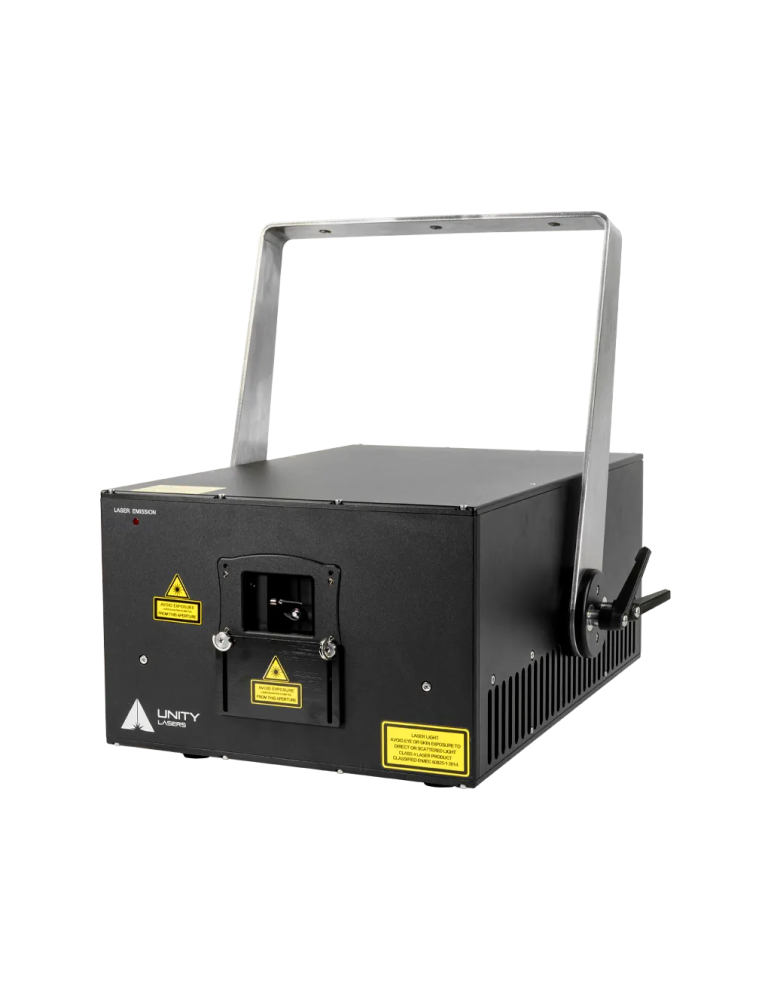

The Unity RAW 10 is an ilda color RGB diode-based laser projector, designed for customers who want a cost-effective laser display system, that still has the power to produce beautiful overhead beam effects, as well as laser graphics high resolution, logos and text.

PDF Product Page

Categories: Lasers Unity

For prices per large quantity, please contact our sales department!

If you're interested in becoming a distributor/reseller, contact us!

Description

Manufacturing Europe

Please note under Decree No. 2012-1303 of November 26, 2012, the use of lasers of a class higher than 2 is reserved for professional show and display activities. See uses authorized by said decree: Decree No. 2012-1303

Product Name :	RAW Unit 10
Laser Type:	Color semiconductor diode laser system
Guaranteed optical output:	>10W
Suitable for:	Indoor/Small Outdoor Laser Shows and Laser Graphic Displays
Control signal:	ILDA - We recommend Pangolin FB3QS and QuickShow
Scanning system:	30,000 points per second at 8°

Security:	Fully compliant with the latest EN 60825-1 and FDA regulations
Weight:	8 kg
The package includes:	Power cord, 10M ILDA signal cable, E-STOP box with 10M cable, set of 4 safety keys, 5 pins, user guide. bypass socket
R\| G\| BMW]:	2700 \| 2700 \| 4800
Beam size [mm]:	5 x 3
Beam divergence:	<1.1 mrad [full angle]
Modulation:	Analog 50kHz
Power Requirements:	100-230V/50Hz
Consumption:	Max. 350W
Operating temperature :	10-40°C
Entry ranking:	IP 20
System Features:	All adjustments such as output power of each color, X and Y axis inversion, X and Y size and position, etc. Scan system protection, a chain of emergency stop signals for multiple "one-hit" system operations.
Laser Safety Features:	Key lock, transmit delay, magnetic lock, scan failure safety, mechanical shutter, adjustable aperture masking plate.
Notice:	*Due to the advanced optical correction technology used in our laser systems, the optical output power of each laser color may differ slightly from the specifications of the respective laser module(s) installed. This does not affect the total guaranteed power.
Dimensions [mm] :	Depth : 340 Width: 247 Size: 148
