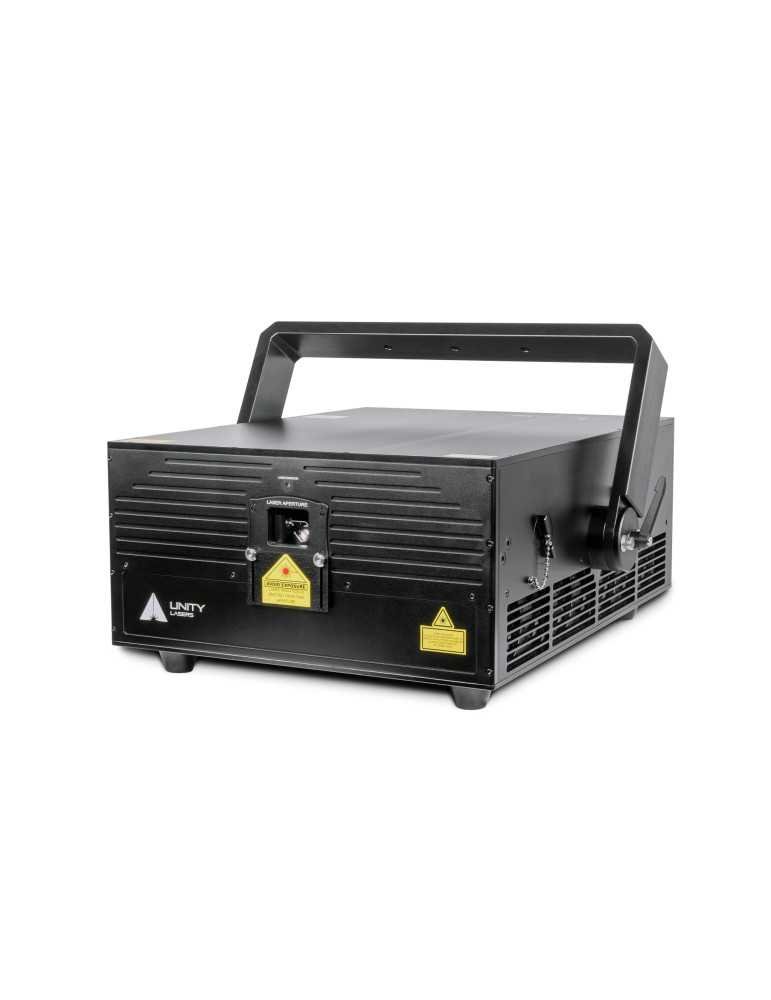

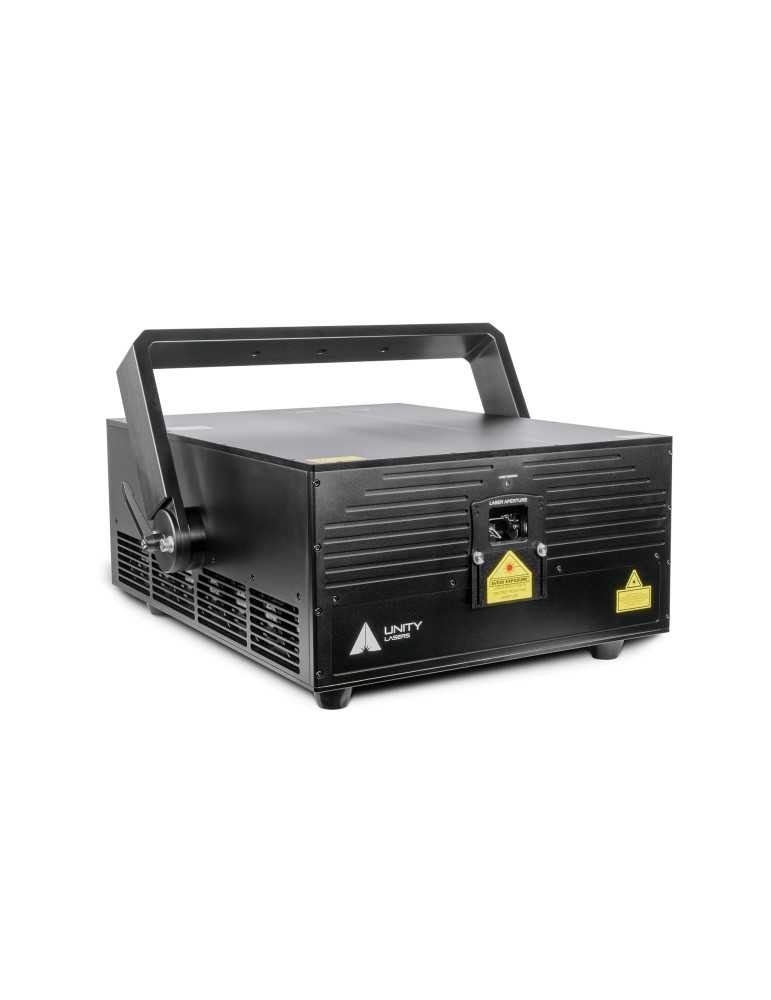

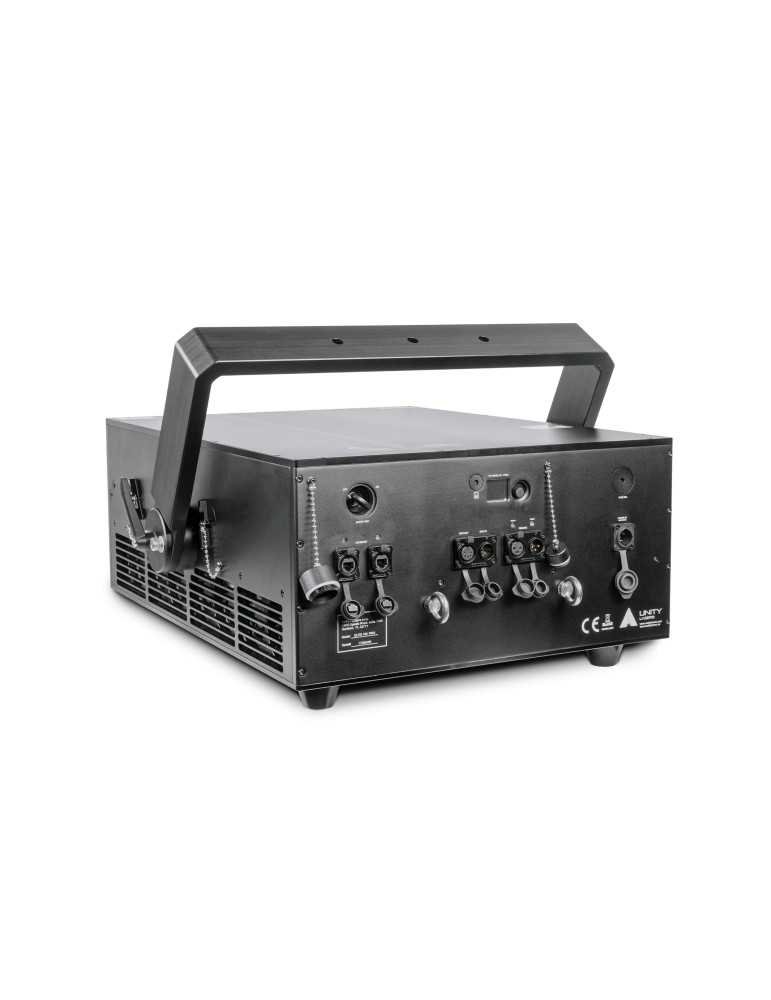

ELITE 120 PRO FB4

Please note that under decree no. 2012-1303 of 26 November 2012, the use of lasers of a class higher than 2 is reserved for professional entertainment and display activities. See uses authorised by this decree: Decree no. 2012-1303

DOWNLOAD THE LASER SAFETY NEWSLETTER

Featuring our new state-of-the-art IP65 enclosure, and designed for lighting professionals, the Elite 100 PRO (IP65) gives you an incredible amount of power to work with (suitable for any size of indoor or outdoor event, as well as historical laser lighting).

The Elite 120 PRO (IP65) incorporates the very latest laser diode technology and combines it with meticulously designed optical scanning systems with larger aperture mirrors on them, which help to keep the razor profile of the beam tight over longer projections - we're talking visibility across the city sky, many kilometres/miles away! Elite 120 PRO was made primarily for atmospheric effects. They can also perform basic laser mapping sequences, as well as simple text, graphics and logos.

ELITE 120 PRO (IP65) lasers feature industry standard FB4 control and include a FREE copy of our powerful QuickShow software and MoboLaser app (for Apple and Android) to design, create and control. Using Elite 120 PRO FB4 (IP65), you can control the content of your show the way you want - whether from a lighting console, PC or in standalone “auto” mode. Patch into other lighting networks too, for seamless control of your lasers, lighting and other effects. Elite 120 PRO (IP65) is a real beast of a machine, offering an excellent return on investment, and really made to impress the audience witnessing this laser in action.

Product Name : Unity ELITE 120 PRO FB4 (IP65)

Laser Type: Colour solid-state diode laser system

Guaranteed optical output: >120W

Suitable For: Lighting professionals: stadiums, arenas. Huge outdoor shows. Cityscape and monument projections (visibility for miles / kilometres)

Control signal: Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN | PC, lighting console, automatic mode, mobile app: Apple, Android]

Scanning system: 25,000 dots per second @ 8°

Scanning angle: 40°

Safety: Fully compliant with the latest EN 60825-1 and FDA regulations

Weight: 58 kg

Package includes: Laser projector with FB4 DMX, IP65 enclosure, protective case, Estop box, Estop cable (10M/30ft), Ethernet cable (10M/30ft), power cable (1.5M/4.5ft), lock, keys, external RJ45 connectors, manual, quick start guide, variance card (* service dongle if outside USA)

R | G | B [mW] : 30,000 | 40,000 | 50,000

Beam size [mm] : 7.5 x 7.5

Beam divergence : <1. 2mrad [Full angle]

Modulation : Analogue 100 kHz

Power requirements : 100-240V/50-60Hz

Power consumption : Max. 1600W

Operating temperature : (-10 °C)-45 °C

Input rating : IP65

System features: All adjustments, such as the output power of each colour, X and Y axis inversion, X and Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in/out, power in/out, DMX in/out, Estop in/out

Laser safety features : Key lock, Emission delay, Magnetic lock, Scan failure safety, Mechanical shutter, Adjustable aperture masking plate.

Notice: *Due to the advanced optical correction technology used in our laser systems, the optical output power of each laser colour may differ slightly from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power.

Dimensions [mm]: Depth: 705

Width: 576

Height: 273

Please note that under decree no. 2012-1303 of 26 November 2012, the use of lasers with a class higher than 2 is reserved for professional entertainment and display activities. See uses authorised by the aforementioned decree: Decree no. 2012-1303
