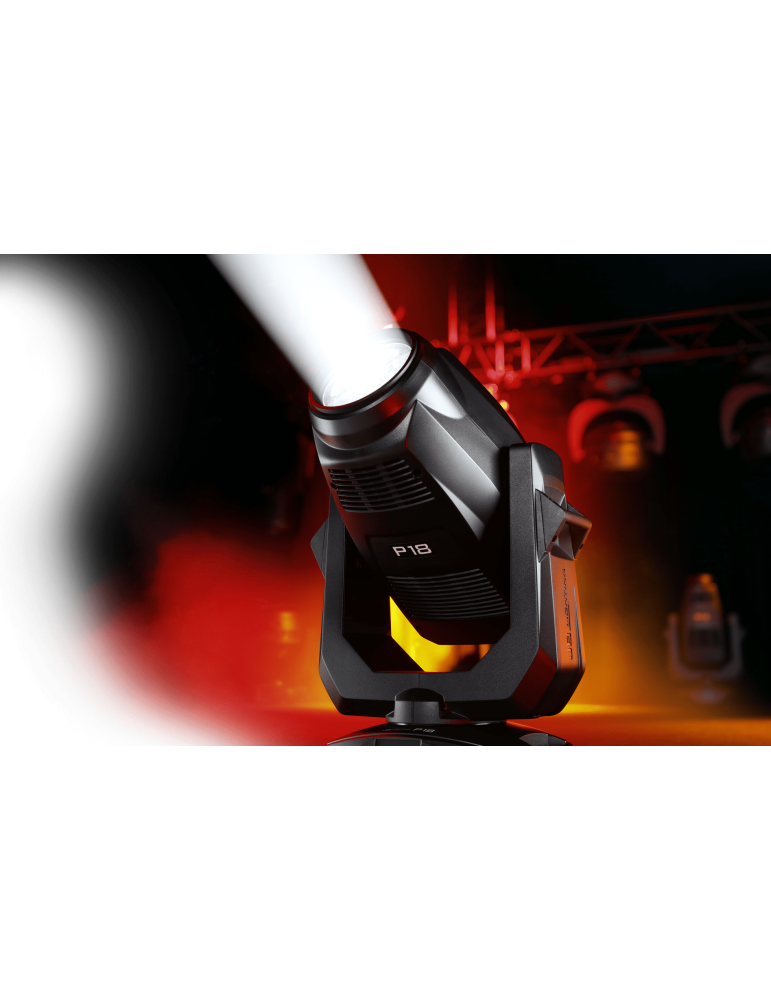

P18 MKII PROFILE HP

Design:HP - High PowerColour temperature:6800KBrightness:72,000 lm (output 40,000 lm)CRI:≥70 (with CRI filter ≥85)Correction filter:Linear CTO

6800 K to 2700 KApplication:Maximum light intensity

for optimum illumination

even at long distances

Technical specifications

Optics and light source

White light LED module 1,100 W HP (High Power): 6,800 K; 72,000 lm (output 40,000 lm); CRI ≥70HC

(High CRI): 5800 K; 49,000 lm (output 28,500 lm); CRI ≥90 WW (Warm White): 3200 K; 42,000 lm (output 23,000 lm); CRI ≥91

> 20,000-hour life

Flicker-free operation, camera mode: 100, 120, 600 Hz and 3 kHz

Zoom range: 6.5° - 54° (1:8.3)

1 gobo wheel with 8 interchangeable static gobos + open

1 gobo wheel with 6 rotating, positioning and interchangeable gobos + open

CMY colour mixing unit for fast, uniform colour mixing + linear CTO (P18 HP and P18 HC) or linear CTB (P18 WW)

P18 HP: 1 colour wheel with 6 or half full colours + open and linear colour selection + high CRI filter

P18 HC and WW: 1 colour wheel with 7 or half full colours + open and linear colour selection

Profile module with 4 knives - each closing completely and with separate movement and rotation controls, 130° rotating module (+/- 65°), each opening individually by +/- 28°.

Continuously motorised high-speed iris with 18 blades

2 prisms - circular and linear, rotatable and indexable

2 frost filters (soft frost/flood frost), continuous - additional frost levels available as an option

Electronic dimmer from 0% to 100% - Electronic shutter with pre-programmed pulse and ramp functions

Animation effect/animation wheel/sparkling effect

Zoom range: 6.5° - 54° (1:8.3)

Focusing with autofocus function

Powerful, high-resolution three-phase stepper motors

Precise, extremely fast and silent movements

540° pan / 280° tilt

USITT DMX-512, RDM

Ethernet interface with Art-Net and sACN

Lumen CRMX TiMo DMX / RDM wireless radio

Bluetooth, Wi-Fi

LCD display with function keys, electronically rotatable

and battery backup

Mini USB for software and other updates

Stand-alone mode, master/slave function

Error and DMX analysis

Original JB-Lighting flush-mount technology

Robust, roadworthy construction with 4 carrying handles

Pan/tilt transport lock

Fan control for almost silent operation, 28 dB(A)

Neutrik input/output XLR 5-pin

2 Neutrik etherCON IN/OUT

Neutrik powerCON TRUE1 IN/OUT

2 Omega brackets with original Camloc® fixings for quick and comfortable installation in any position, with four different fixing options.

Maximum power consumption 1,500 VA

Supply voltage 100 V - 240 V, 50/60 Hz

Dimensions : W 475 x H 755 x D 307 mm

Weight: 32 kg
