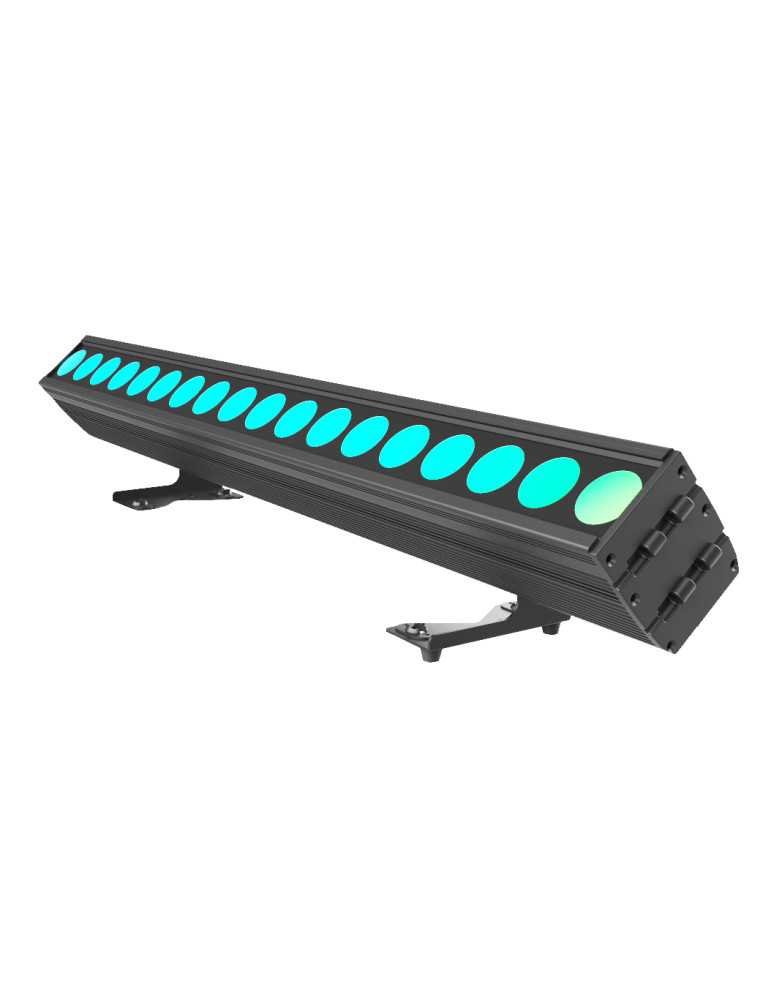

ULTRA BAR 1820
ULTRA BAR 1820

ULTRA BAR 1820

🌟 Overview

The ULTRA BAR 1820 from Nicols is an IP65-certified professional LED bar that combines visual power, robustness and great control flexibility. Perfect for event or architectural installations, it delivers rich colourimetry thanks to its 4-in-1 RGBW LEDs of 20 W each.

The Nicols ULTRA BAR 1820 is a high-end LED bar designed for demanding outdoor applications. It combines power, rich colours, extreme durability and fluid control in an easy-to-handle format. It is the solution of choice for professional and spectacular visual lighting projects.

Nicols
N.ULTRA.BAR.1820
50 Items
€524.17
Tax excluded
Quantity
En stock

Outdoor Colorization (minimum IP 54),  ULTRA
  Return policy (edit with the Customer Reassurance module)
  For prices per large quantity, please contact our sales department!
  If you're interested in becoming a distributor/reseller, contact us!
Description

  • 🔧 Technical data

    🔦 Light source & power

      • 18 x 20 W 4-in-1 RGBW LEDs, for a powerful, even light output (total ~380 W)

      • LED life estimated at 100,000 hours, for exceptional durability

      • Standard aperture angle of 25°.

      • Diffusion options available in 15°, 45° or 60° to adapt the beam to lighting requirements

    🎛 Control & visual effects

      • DMX512/RDM with various programming modes: 5, 8, 15, 32 or 72 channels depending on the granularity required

      • Precise 0-100% dimmer and strobe up to 20 Hz (native strobe control)

      • Modern interface via colour OLED screen and touch buttons, for intuitive control in the field

    🛡 Construction & connectors

      • IP65 certified, the bar is protected against dust and water jets, suitable for intense outdoor use

      • Seetronic waterproof connectors for power supply and DMX signal, guaranteeing reliability and ease of installation even in wet conditions

      • Robust design with optimised thermal management for stable performance

    📐 Dimensions & operating environment

      • Weight: approx. 7 kg - easy to transport

      • Operating temperature range: -20°C to +40°C, suitable for most outdoor climates

    ✅ Highlights

      • High light output and remarkable RGBW colour reproduction, with smooth, even rendering.

      • Exceptional durability with 100,000 hours of LED life, designed for frequent, intensive use.

      • Advanced control flexibility, from professional DMX to standalone modes.

      • Modern, easy-to-use OLED interface for quick adjustments.

      • IP65-rated construction and waterproof connectors, ideal for harsh environments.

      • Optional accessories for use in multiple positions

    📋 Summary

    • Element Main characteristics
      Light source 18 × 20 W 4-in-1 RGBW LEDs
      Total power ~380 W
      LED lifetime ≈ 100,000 hours
      Beam angle 25° standard (15°, 45°, 60° optional)
      DMX modes 5, 8, 15, 32 or 72 RDM/DMX channels
      Visual effects Dimmer 0-100%, strobe 0-20 Hz
      User interface Colour OLED screen, touch-sensitive buttons
      Protection IP65
      Connection Seetronic waterproof power supply & DMX
      Weight ~7 kg
      Temperature range -20°C to +40°C
