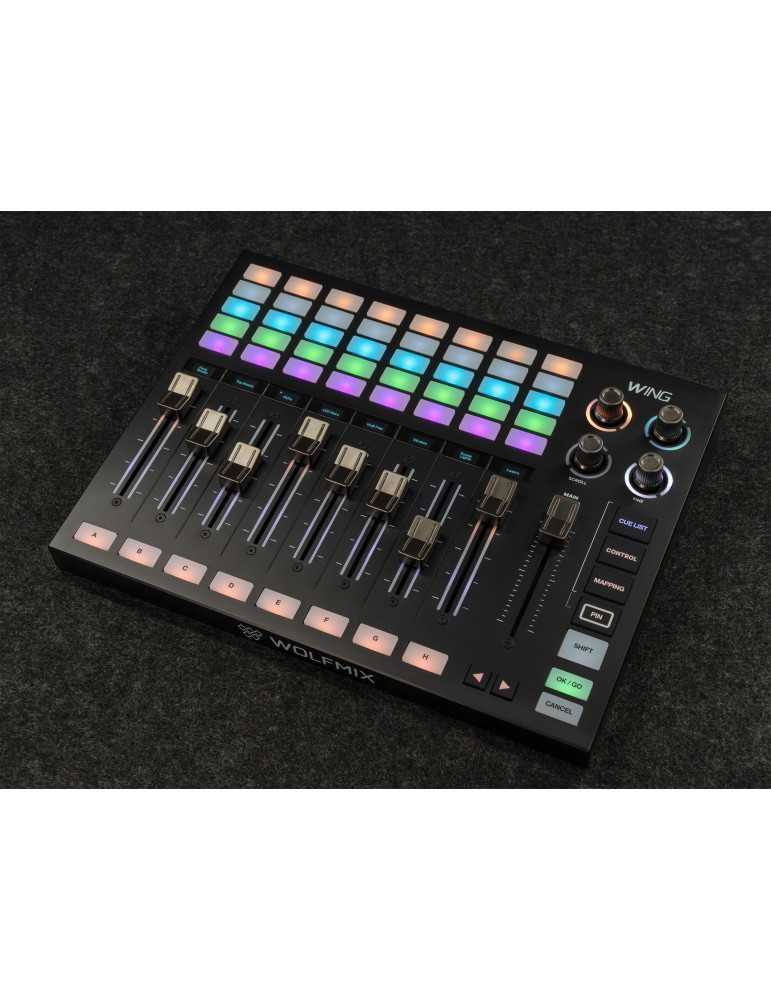

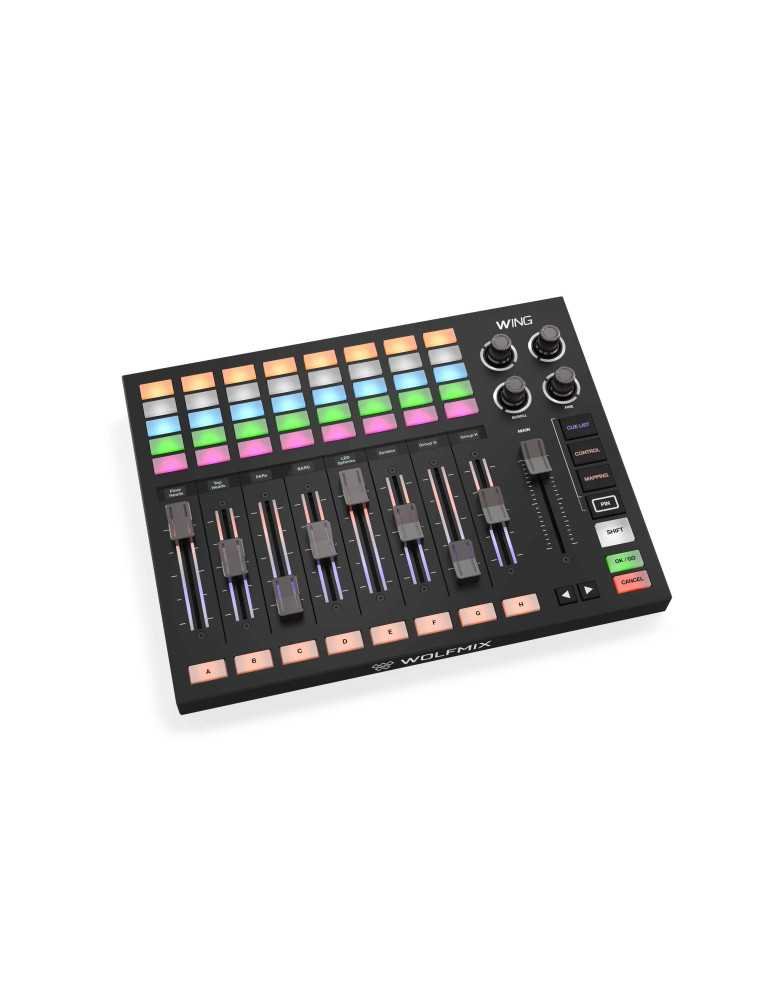

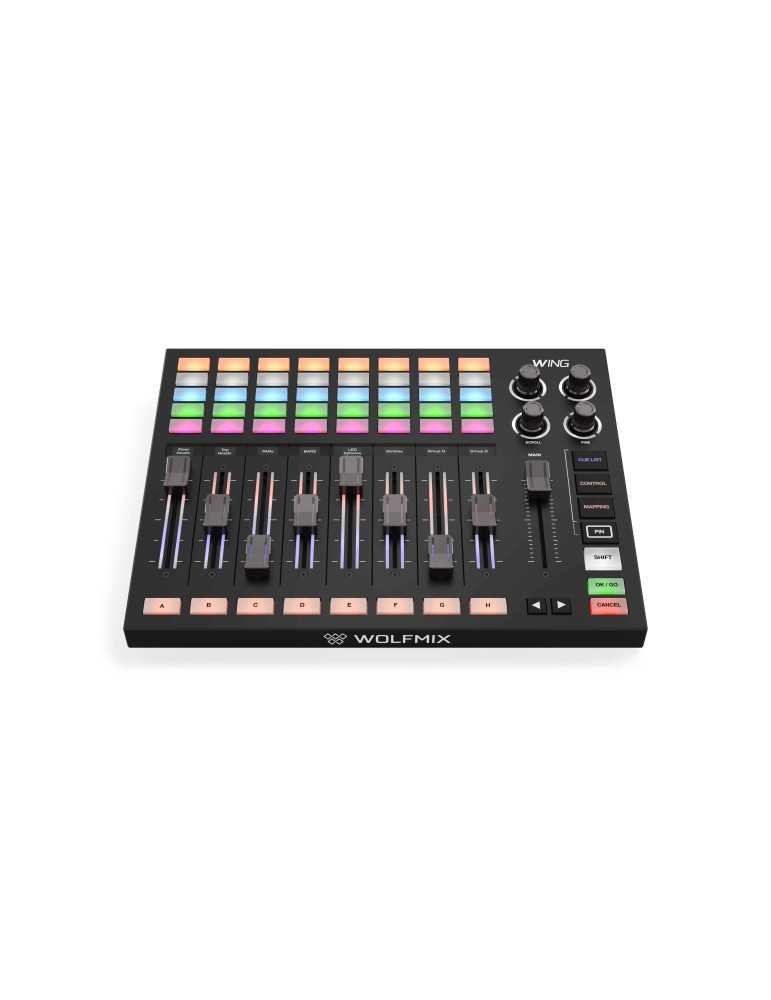

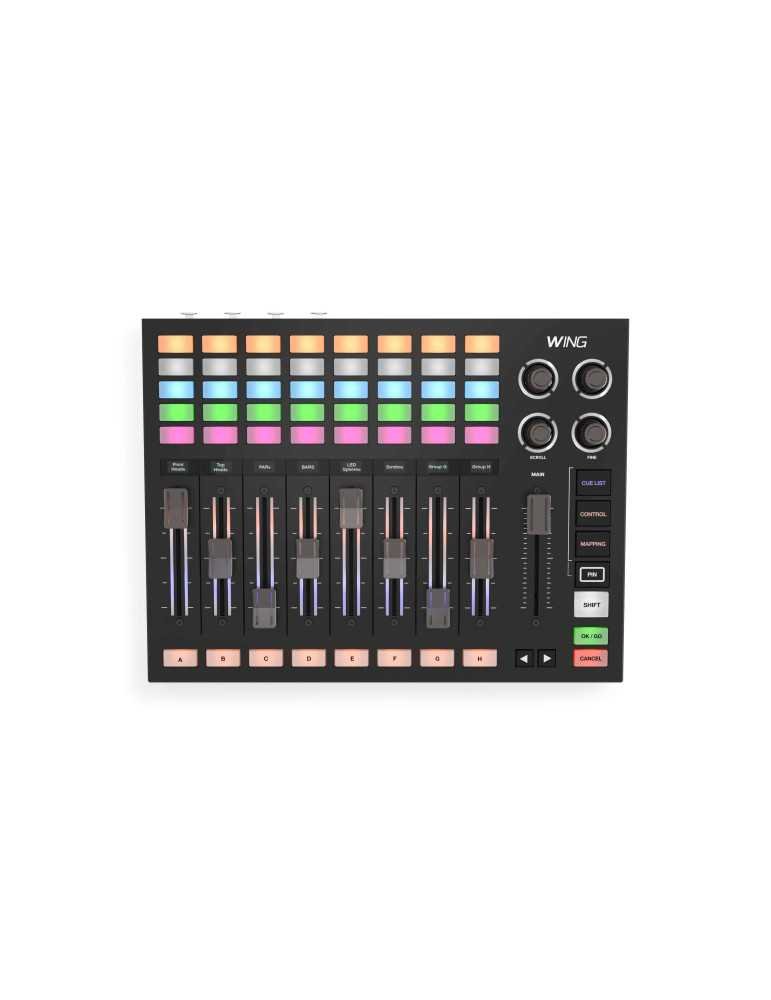

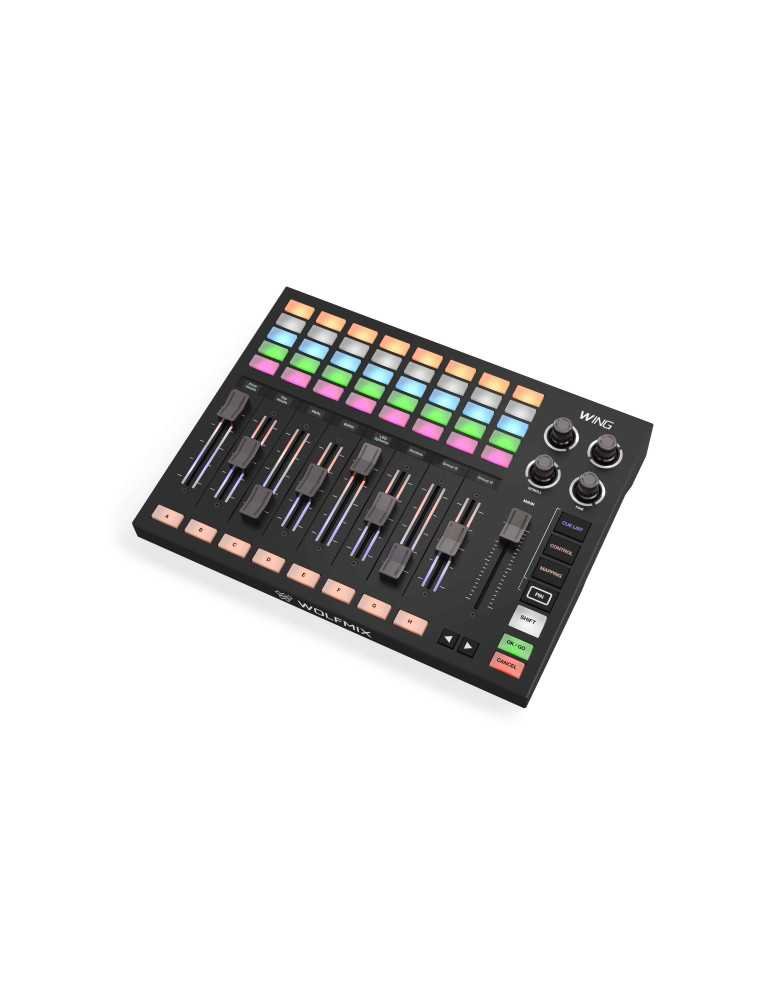

WOLFMIX WING

Specifications techniques

Size & weight

• 220 x 290 x 57 mm / 8.66 x 11.42 x 2.24 in
• 1.5 kg / 3.31 lbs

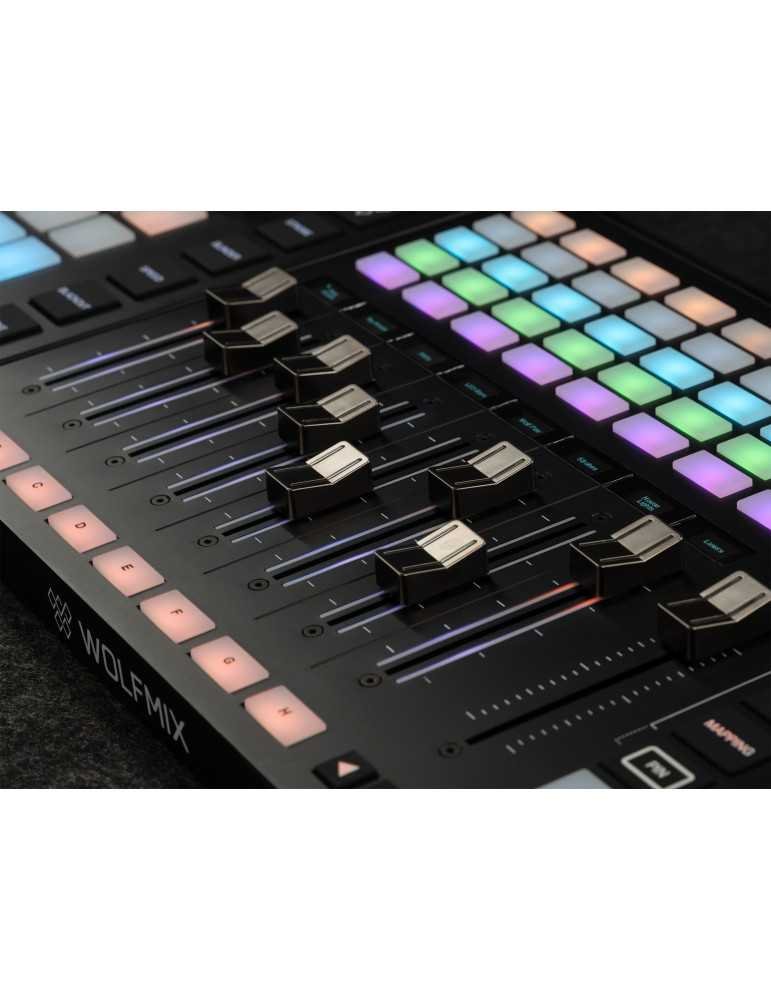

Faders

• 8 motorised faders with electroplated capacitive touch fader caps
• 8 lightguides. 4 RGB LEDs per fader operate in single or dual color modes
• Single main fader

Displays

• 8 monochrome OLED strip modules
• 64 x 32 pixels

Button pads

• 57 RGB LED backlit silicone buttons with matt oil finish
• 8 x 5 Matrix
• 8 x Group select
• 3 x Mode (Cue List, Control, Mapping)
• 2 x Paging
• OK/GO • Cancel
• Shift • Pin

Encoders

• 1 x Detented
• 3 x Non-detented
• Electroplated caps
• Dedicated SCROLL encoder (detented) 220mm
• Dedicated FINE control encoder (non-detented)

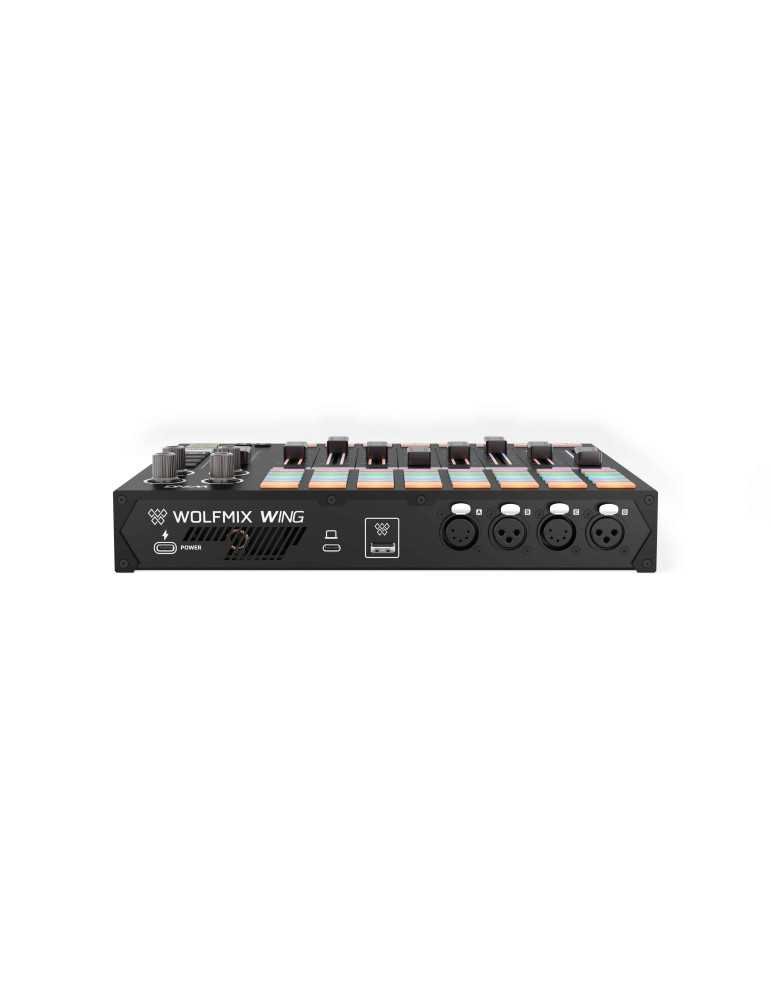

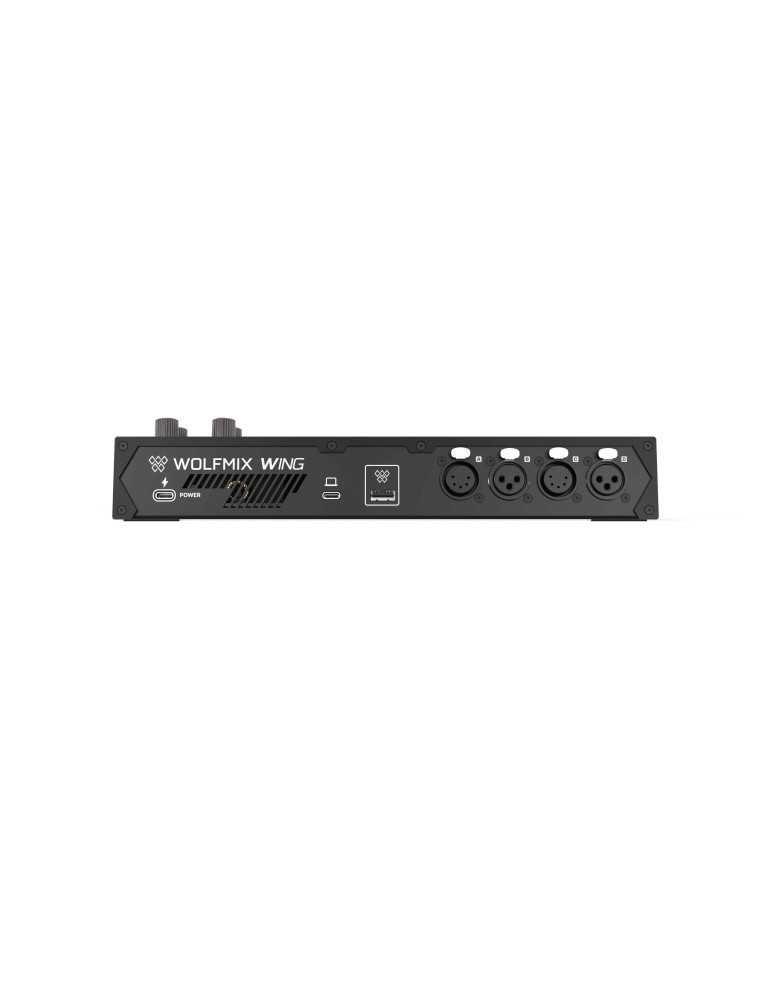

DMX

• 2 x 3-pin DMX OUT XLR connectors
• 2 x 5-pin DMX OUT XLR connectors
• Every port is freely assignable to any of the available
• universes

USB

• USB-C Power - 15 V, 3 A
• USB-C Data

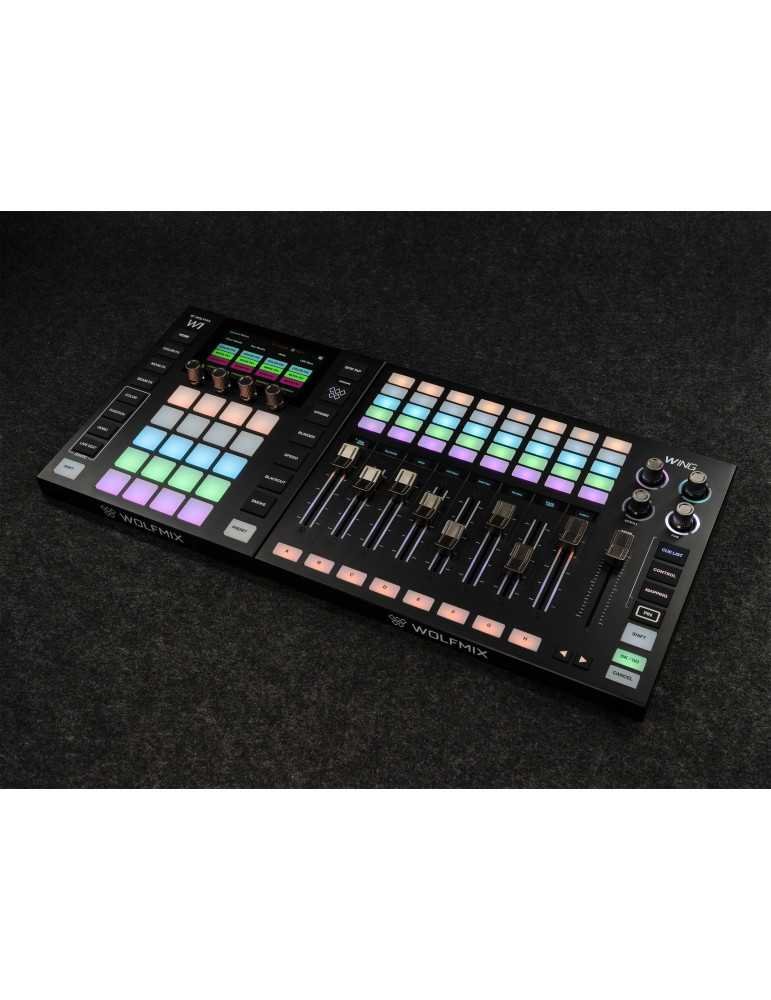

• USB-A - connects and powers the Wolfmix W1

Housing

• ABS Plastic
• Powder-coated steel base plate with 100mm VESA (M4, 6mm max)

Processing

• 220 MHz CPU with ARM core
• 8 MB RAM
• 16 MB Flash
• Dedicated second processor driving the motorised fader bank
