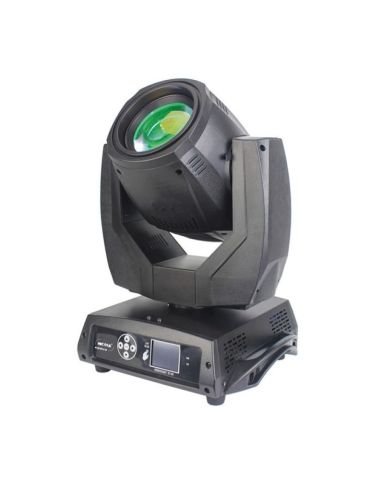

RACER BEAM 230

💡 Power & Optics

• Light source: YODN 7R discharge lamp - 230 W

• Ultra-narrow beam: 3° angle for very long projection distances

• Light intensity: up to 140,000 lux at 10 m

• Motorised focus: automatic focus for sharp, precise gobos

🎨 Visual effects

• Fixed gobo wheel: 17 gobos + aperture

• Colour wheel: 14 colours + white, with split and rainbow effects

• Prisms:

  • 8-facet rotating prism for multi-beam effects

  • Integrated frost filter for softer rendering when required

• Fast strobe and smooth dimming from 0 to 100

🧭 Movement & Control

• Pan (PAN): 540°.

• Tilt: 250°.

• 16-bit resolution: ultra-smooth movements

• Operating modes:

  • DMX512 (16, 17 or 20 channels)

  • Auto (built-in programmes)

  • Master / Slave

  • Musical (music control)

⚙️ Construction & Connections

• Power supply: PowerCON

• DMX: 3-pin XLR inputs/outputs

• Dimensions: 405 × 530 × 371 mm

• Weight: 18 kg

• Supports: 2 Omega hooks included

• Display: Digital screen with quick and easy menu navigation

✅ Highlights

✔ Exceptionally intense beam
✔ Very good gobo rendering at long distances
✔ Full effects: colours, prisms, frost, strobe
✔ Perfect for medium to large stages, festivals, clubs, events
✔ Excellent reliability and robust finish from Nicols
