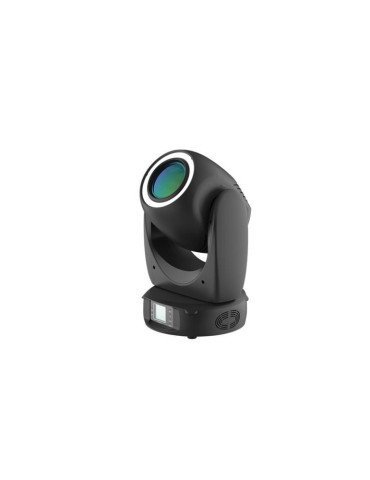

MOOVER BEAM 100

⚙️ Key technical features

• Light source: powerful 100 W white LED, supplemented by 24 3-in-1 SMD RGB LEDs for ring effect

• Power consumption: approx. 150 W, AC mains voltage 100-240 V 50/60 Hz

• Operating modes: DMX512 (with bidirectional RDM protocol), automatic, master-slave, internal audio control

🎛 Control & configuration

• Number of DMX channels: 16 or 20 channel modes depending on desired level of control

• LED dimming: linear from 0 to 100% for smooth transitions

• Strobe: adjustable high-speed electronic strobe effect

• User interface: intuitive colour LCD screen, menu available in French and English

🔧 Motion & optics

• Pan/Tilt: 540° horizontal and 270° vertical rotation, 16-bit resolution for a smooth finish

• Beam angle: very narrow, between 2° and 3°, ideal for focused beam effects

🌀 Internal visual effects

• Gobo wheel: 13 gobos (interchangeable patterns) for a variety of beam effects

• Colour wheel: 12 colours + white, split (half-colour) and Rainbow modes for spectacular transitions

• Prism: 8-facet rotating prism to multiply beams and enrich diffusion

• Additional six-colour wheel: adds an extra coloured prism for complex and original renderings

📐 Dimensions & ergonomics

• Dimensions: approx. 225 × 210 × 360 mm (W × D × H )

• Net weight: 6.3 kg - compact enough for quick installation

• 3-yearmanufacturer's warranty

🚀 Benefits & uses

• Dynamic ring effect: the 3-in-1 RGB LED ring creates floating coloured halos around the main beam, ensuring a unique decorative rendering ("wow" )

• Adaptability and compatibility: compatible with a wide range of DMX controllers, can operate as a stand-alone or synchronised master-slave system

• Versatile use: perfect for clubs, concerts, evening events, mobile shows, etc.

• Attractive look: neo-retro design from the Moover range, very popular in modern and festive venues

📊 Synthetic summary
