NOVA PAR 710

🔧 Technical data

▸ Light source

• 7 x 10 W 4-in-1 RGBW LEDs, providing a rich, even colour mix.

▸ Luminous intensity

• ~5230 lux at 2 m in RGBW mode, for effective coverage over medium areas.

▸ Optics & aperture

• Standard aperture angle of 25°.

• Optional optical filters to widen the beam :

  • 40° filter → ~50° aperture

  • filter 60° → aperture ~70

  • 40° × 1° filter → 50° × 25° aperture

▸ Controls & effects

• Dimmer 0-100 % in 16 bits, strobe adjustable up to 20 Hz .

• Flicker-free, suitable for flicker-free video capture.

• Control modes: DMX512 / standalone / master-slave.

• Number of DMX channels: 5 or 8 depending on the level of control required.

• OLED interface with 4 buttons, menu available in French and English, REC DMX 512 compatible for fast programming.

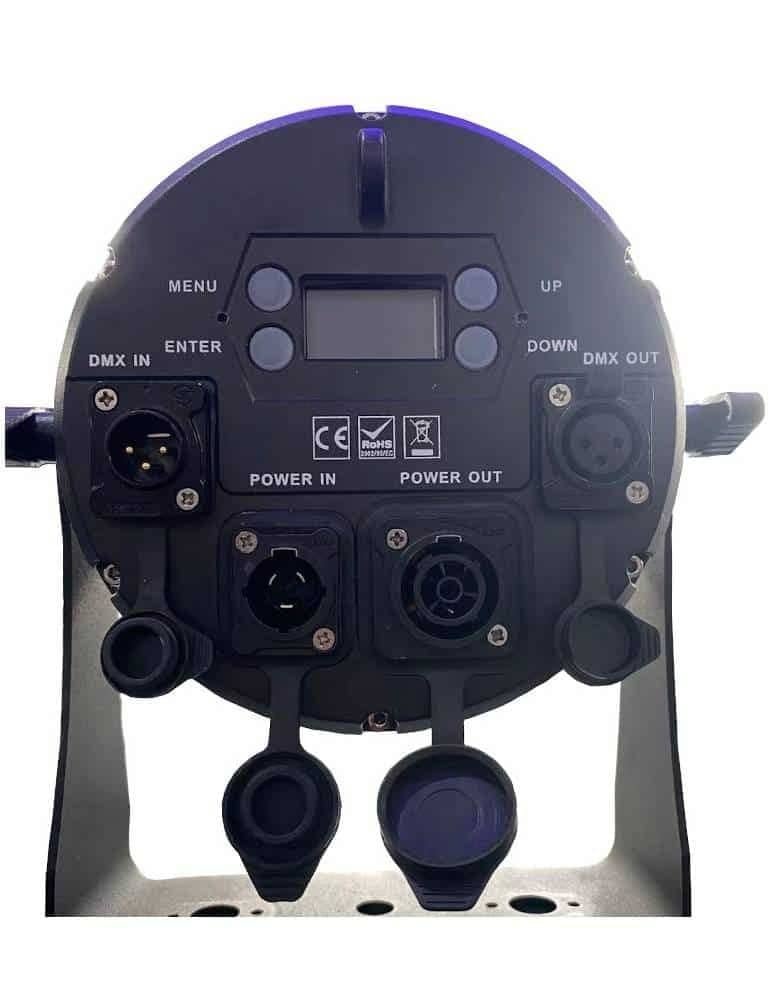

▸ Construction & connectors

• IP65 rated, robust enclosure with Seetronic SAC3MX (power) and SCWF3/SCWM3 (DMX 3-point) waterproof connectors.

• Designed for hanging or standing mounting, with lyre supplied for flexible installation.

▸ Physics & consumption

• Dimensions: 266 × 244 × 156 mm

• Weight: approx. 5 kg.

• Maximum power consumption: 80W (AC input 100-240 V, 50-60 Hz).

▸ Durability & environment

• LED lifetime: ~40,000 hours (~5 years in 24/7 operation).

• Operating temperature: -20°C to +40°C, housing tolerates up to +65°C outdoors.

• Manufacturer's warranty: 3 years (excluding parts subject to wear and tear), with reparability assured via the Nicols Works range (parts available up to 5 years after purchase).

✅ Benefits

• High light output with ~5230 lux at 2 m.

• IP65 shielding ideal for outdoor use.

• Flicker-free operation, ideal for professional video capture.

• Flexible control (DMX / Auto / Maestro-Esclave) and smooth multilingual interface.

• Adaptable aperture options to match different types of projection.
