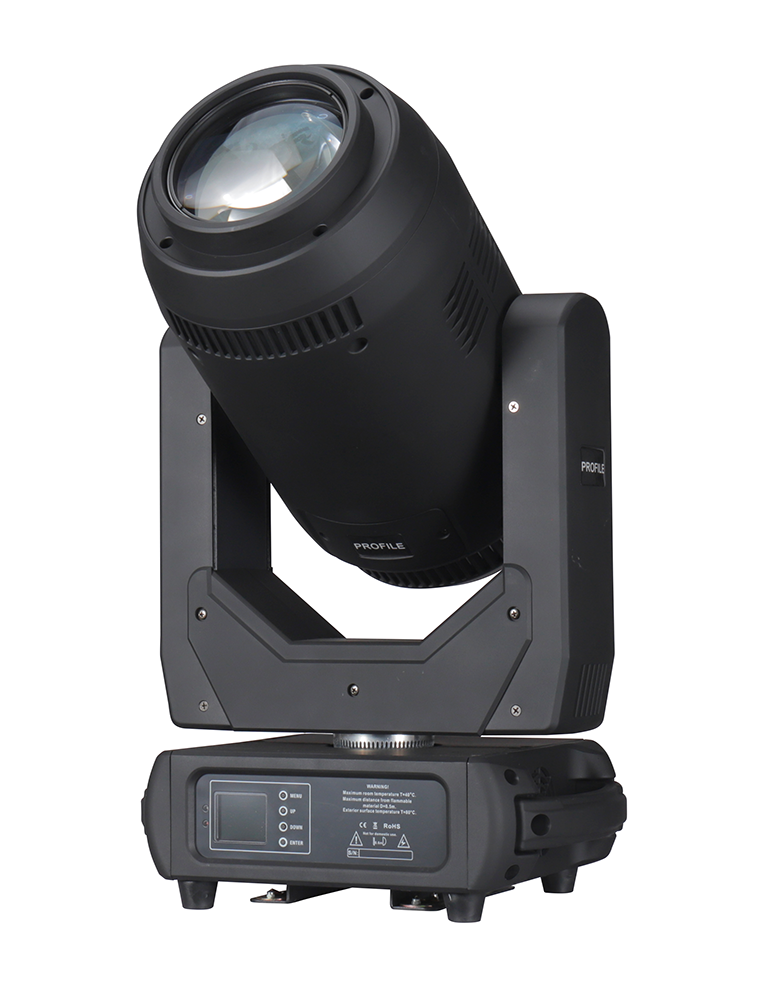

RACER PROFILE 350

💡 Light source & performance

• Light source: 350 W high-performance white LED

• Brightness:

  • 25,000 lux at 5 m (8° zoom)

  • 1,500 lux at 5 m (35° zoom)

• CRI: over 75, ensuring faithful colour reproduction

• Estimated life: 50,000 hours

• Source colour temperature: 7500 - 8000 K

🎨 Optical effects & features

Colour wheel: 6 colours + white, with rotation and rainbow effects

• Rotating gobo wheel: 7 gobos + open, rotate and shake

• Gobo size: OD: 20mm, ID: 15mm
• Profile wheel for regular graphic cuts

• Rotating prism: 5 facets, bidirectional at variable speeds

• IRIS: Independent iris, size adjustable

• Focus: DMX linear focus adjustment, fluid focus adjustment
• Atomisation : Independent atomised lens, softer light

• Electronic strobe: from 0.3 to 25 flashes per second

🧭 Movement & control

• Pan: 540

• Tilt: 270

• Resolution: 16 bits for smooth, precise movements

• Operating modes:

  • DMX512 (up to 22 channels)

  • RDM

  • Master-Slave

  • Automatic

  • Sound activation

• Connectors:

  • DMX input/output: XLR 3 and 5 pins

  • Power supply: PowerCon

📐 Dimensions & physical characteristics

• Dimensions: 312 x 222 x 590 mm

• Net weight: 16 kg

• Power supply: AC 90-260 V, 50/60 Hz

• Power consumption: 450 W

• Cooling system: efficient, silent fan

• Thermal protection: automatic brightness reduction in the event of overheating

✅ Highlights

• Optical versatility: combines Beam, Spot and Wash effects in a single lyre

• Rich, varied colours thanks to the CMY system and colour wheel

• Dynamic visual effects with rotating and fixed gobos, prism and Frost effect

• Precise control via DMX512, with an intuitive user interface

• Robust construction for demanding professional environments

• Modular structure for easy maintenance
