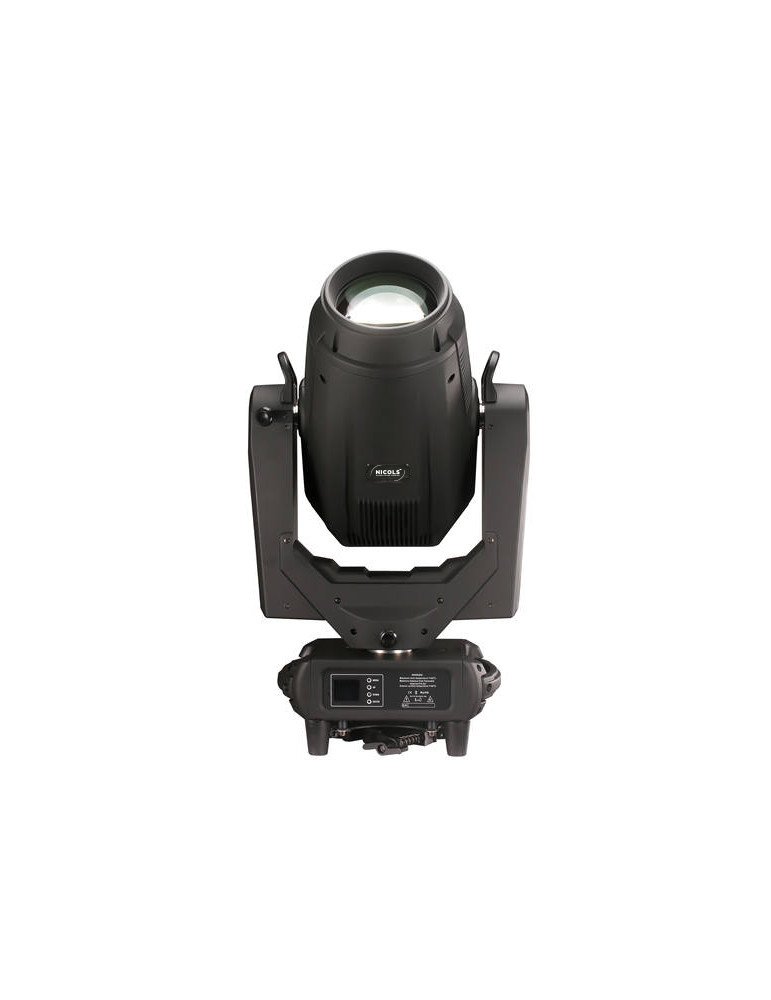

RACER PROFILE 550

Light source specification:

Light source : LED high brightness 600W module (in order to protect the lifespan of the LED, the actual power adjusts to 550W)

Color temperature: 7500K-8000K

Lifespan: 50,000 hours

color:

1 color wheel: 8 colors + white

2. With CMY function, color can be adjusted;

Can be mixed to make the color richer.

Gobo wheel :

1. 1 rotating gobo wheel: 7 gobos + white

The pattern plate adopts a detachable design, which is more convenient to replace the pattern plate

2. 1 fixed gobo wheel: 11 gobos + white

3. 1 streamline wheel: can cut any geometric pattern to make the effect more dazzling

Prism:

Wheel with two prisms , can be rotated in both directions

To focus:

DMX linear focus adjustment, super smooth focus adjustment.

Strobe/Dimming:

Electronic strobe, 0.3 to 25 times/second, linear dimming

Gel  :

frosted lens Independent , softer light

Rotation angle:

Use a three-phase stepper motor, fast, quiet, with automatic return function.

Horizontal : 540 °

vertical : 270 °

Beam angle:

4-40 °

DMX linear amplification, beam angle can be freely switched from 4 to 40 degrees

Control mode:

DMX512 signal, 3 pin + 5 pin

channel mode 33 channel

Other functions :

Adjustable horizontal and vertical speed

Use powerful quiet fan, LED temperature display , reduce power due to overheating and ensure LED lifespan.

Modular structure for easy maintenance

Housing material/protection level:

Engineering plastic resistant to high temperatures and UV rays

Degree of protection: IP20

weight:

Net weight: 26 kg

Gross weight: 27 kg

Package size:   (mm)

510 (L)* 370 (W)* 800 (H)

Electrical parameters :

Tension : 100 V ~ 240 V CA, 50/60 Hz.

Power: 700 W at 220 V

Power factor: PF>0.9

Operating temperature:

Maximum ambient temperature 50 ° C
