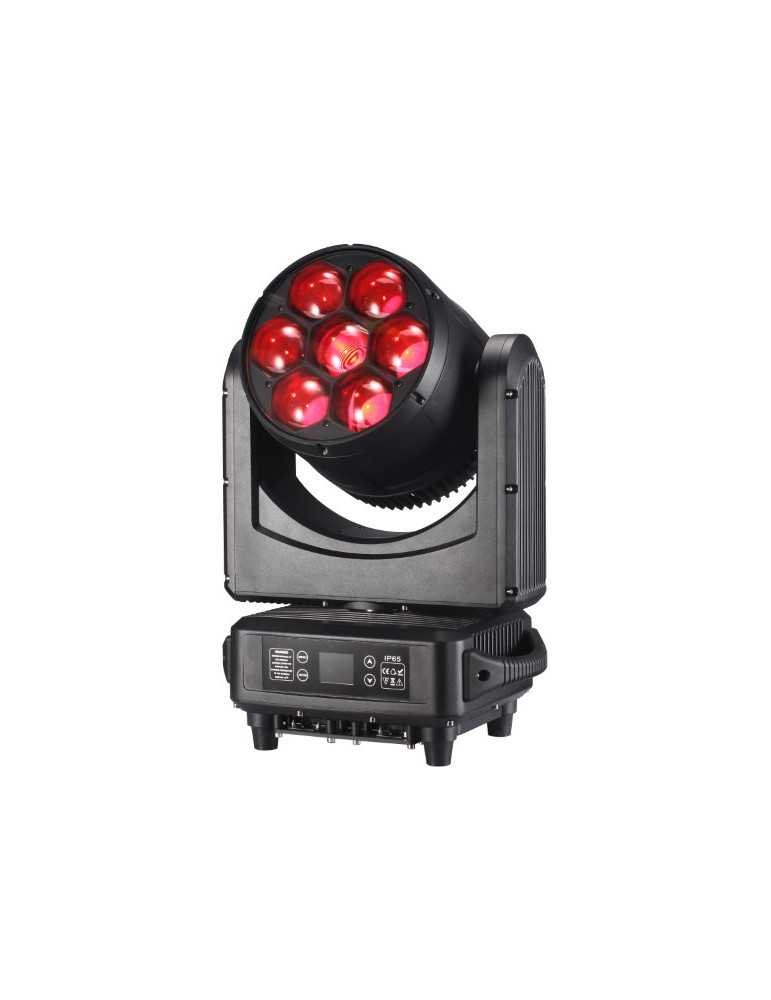

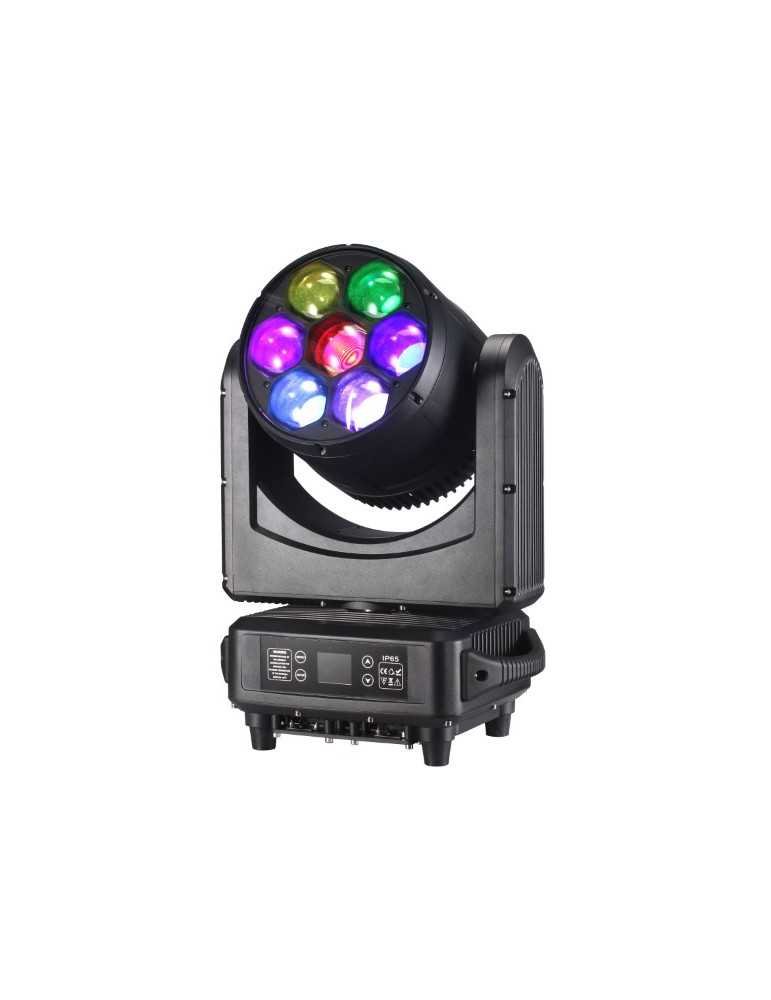

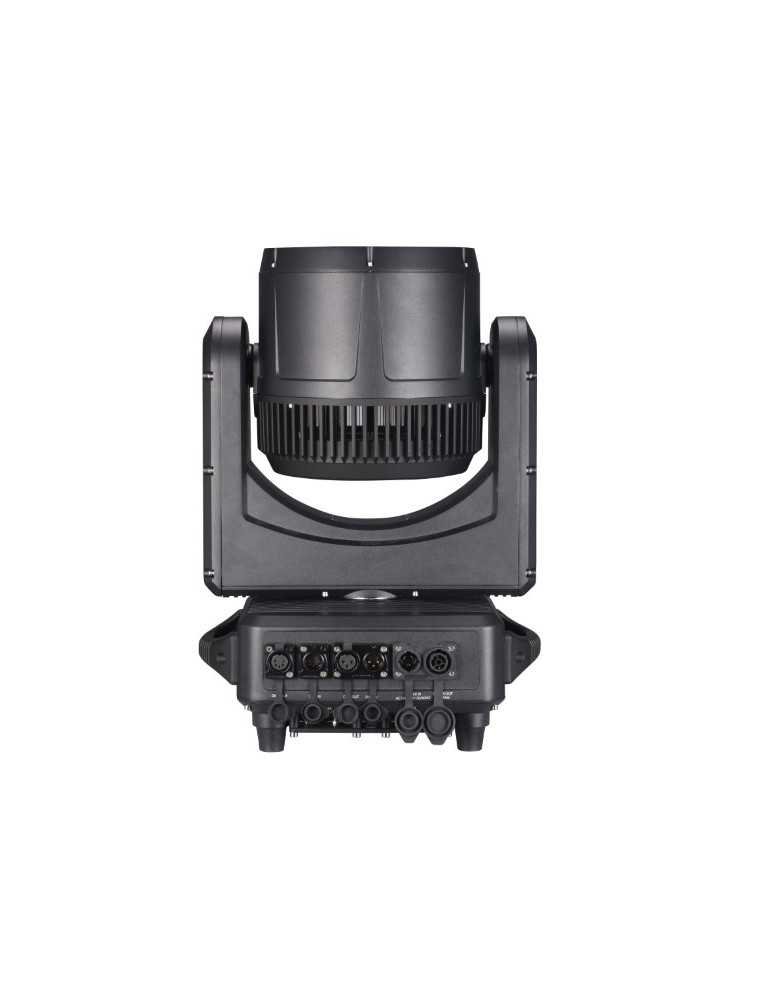

SPRINTER IP WASH 420

💡 Key technical features

• Light source: 7 RGBW LEDs 60W (total approx. 420W), with smooth, flicker-free mixing.
• Linear optical zoom: variable angle between 4° and 45° for narrow beams or wide diffusion.
• Rotating effects: optical lens with infinite rotation (360°) to generate dynamic kaleidoscopic effects.
• DMX control: DMX modes (23/35/51 channels depending on configuration), RDM, Art‑Net, auto, master‑slave, sound. Bilingual touchscreen OLED display.
• Strobe: adjustable between 1 and 25 Hz, linear dimming 0–100%, adjustable color temperature (2500–10000 K).
• Power consumption/power supply: 450 W max, AC voltage 100–240 V, 50/60 Hz.
• Dimensions & weight: approx. 334 × 490 × 228 mm, weight 17 kg.
• Effect macros: static effect macro function and dynamic effect macro function
• Display screen: 1.77-inch LCD screen, bilingual menu in Chinese and English, waterproof smart touch button.
• Temperature control: Intelligent temperature control, capable of automatically adjusting the cooling fan speed and overheating protection, with three ventilation modes.
• Housing material: Second-generation waterproof structural design, die-cast aluminum housing and fire-resistant engineering plastic.

⚙️ Internal features and options

• Individual LED control: each LED is addressable to create custom atmospheres and transitions.
• RGBW slide and dynamic macros: programmable static or animated visual effects, with color temperature variation.
• Smart cooling: adaptive ventilation based on temperature, overheating protection, multiple ventilation modes.

📋 Summary table

Item Specification

LED power 7 × 60W RGBW (420W)

Optical zoom 4°–45°

Optical rotation 360° infinite

DMX channels 23 / 35 / 51

Control modes DMX, Art-Net, RDM, auto, sound, master/slave

Display / 1.77" OLED touchscreen interface (bilingual menus)

Strobe 1–25 Hz

Color temp. 2,500–10,000 K

Power consumption up to 450 W

Dimensions (W×D×H) 334 × 490 × 228 mm

Weight 17 kg

IP65 protection

✅ Key features

• High power and reliability: ideal for professional outdoor lighting.
• Advanced visual effects with infinite rotation, dynamic macros and wide zoom.
• Flexible control via DMX, Art‑Net protocols or standalone modes.
• Intuitive touchscreen user interface for on-site adjustments.
• Smart cooling guaranteed for long-lasting performance.

🎯 Recommended applications

• Outdoor events: facades, concerts, festivals, weddings.
• Scenic or architectural lighting requiring precision, intensity, and visual variety.
• Installations requiring standalone or flexibly controlled shows (auto/sound).
