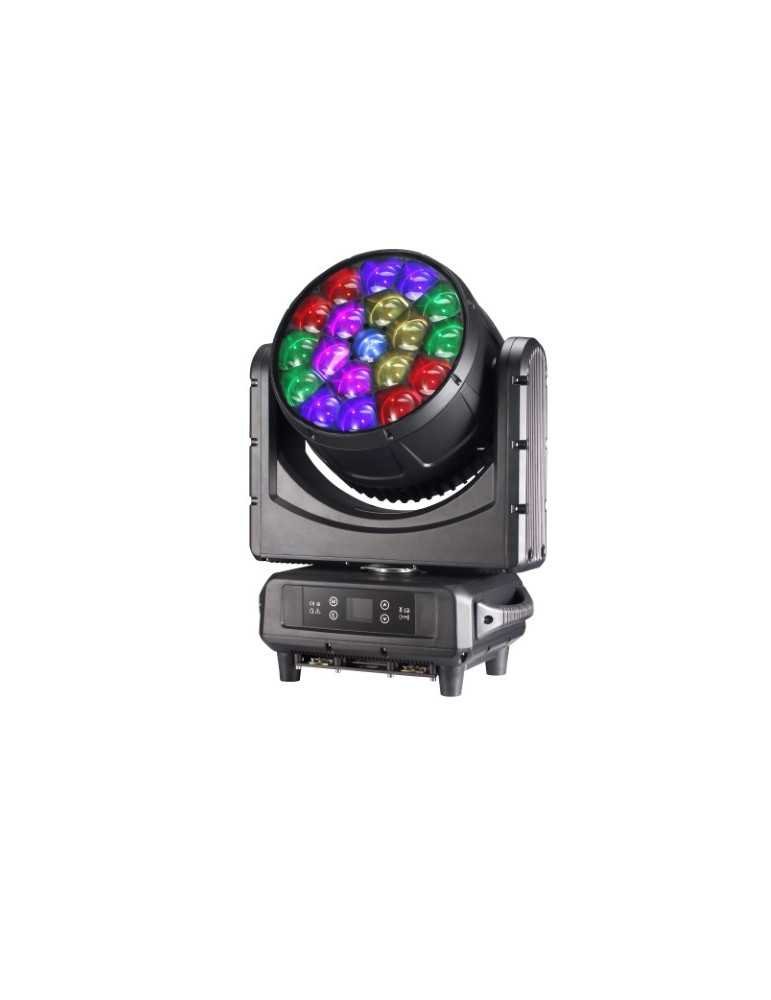

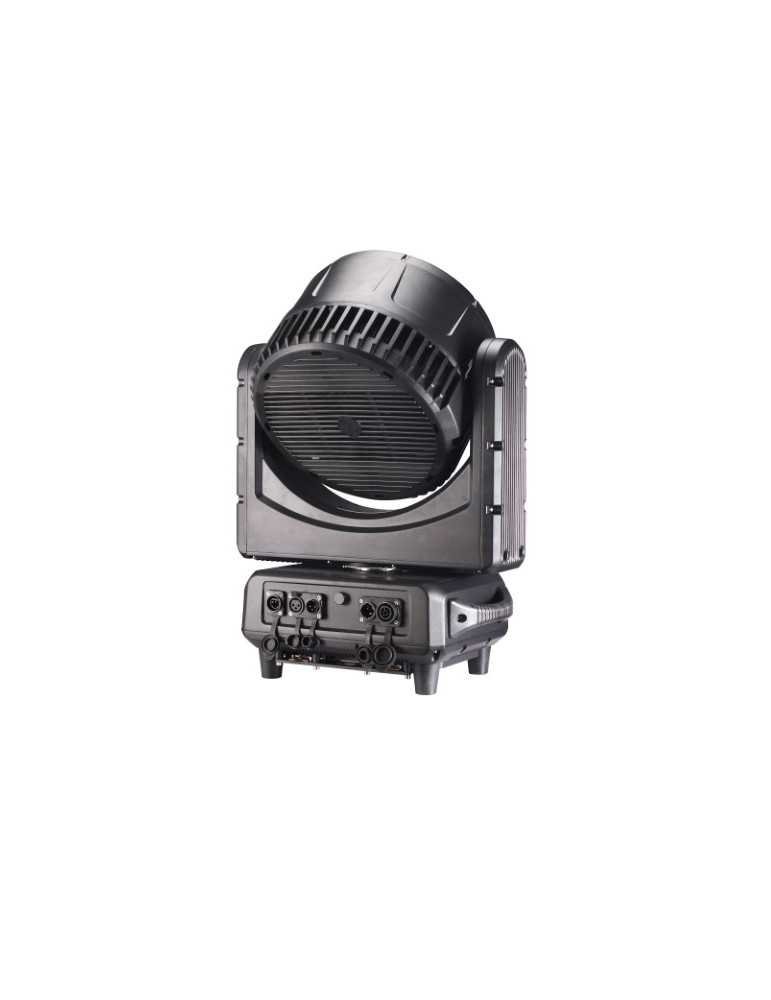

SPRINTER IP WASH 760

💡 Technical specifications

• Light source: 19 RGBW LEDs × 40 W (≈ 760 W) ensuring very uniform color rendering.
• Motorized zoom: variable angle from 7° to 45°, for a precise or wide beam.
• Infinite optical rotation: 360° rotating lenses, offering kaleidoscopic visual effects.
• Strobe: adjustable from 1 to 25 Hz, very fast and dynamic.
• Smooth dimming: 32-bit linear for smooth light transitions.
• Adjustable color temperature: can be adapted to suit different atmospheres (often from 2,500K to 10,000K).
• Intelligent cooling: adaptive ventilation to protect the equipment during intensive use.
• Display screen: 1.77-inch LCD screen, bilingual menu in Chinese and English, waterproof smart touch button.
• Intelligent control: Equipment usage and lighting time, equipment temperature and humidity can be queried via the lighting menu.
• Housing material: Second-generation waterproof structural design, die-cast aluminum housing and fire-resistant engineering plastic.

🎛️ Control & Interface

• Compatible protocols: DMX512, RDM, Art‑Net.
• Channel plans: available in 21 / 35 / 78 / 111 channels depending on the desired mode of use.
• Operating modes:
  • Auto (internal programs),
  • Master/slave,
  • Music response via Sound mode with integrated microphone.
• Waterproof OLED touchscreen (1.77"): intuitive navigation for on-site settings.

📋 Dimensions & performance

Element Specification

LED power 19 × 40 W = ~760 W

Optical zoom 7° to 45°

Optical rotation 360° infinite

Moving parts Pan 540° (+16 bit), Tilt 270° (+16 bit)

DMX channels 21 / 35 / 78 / 111

Waterproof OLED touchscreen 1.77"

Power consumption Approx. 800 W

Dimensions (W×D×H) ~390 × 499 × 240 mm

Weight Approx. 23 kg

IP65 protection (weatherproof exterior)

Noise ~32 dBA at 1 m

Warranty Approx. 3 years

✅ Key features

• Combination of power and waterproofing for intensive outdoor use.
• Dynamic visual effects thanks to 360° rotation, zoom, optical rotation, strobe, variable temperature.
• Smooth RGBW management with 32-bit dimming for natural transitions.
• Flexible and comprehensive control via DMX, RDM, Art‑Net with internal programs or sound interaction.
• On-site ergonomics: intuitive OLED touch menu, thermal adaptation, simplified maintenance.

🎯 Recommended applications

• Outdoor shows, festivals, illuminated facades, open-air clubs.
• Stages requiring powerful, dynamic and colorful effects.
• Fixed or mobile installations, stand-alone or integrated with DMX or Art-Net consoles.

📌 In summary

The Nicols SPRINTER IP WASH 760 combines performance, robustness, and creativity: motorized zoom, optical rotation, high-power RGBW LEDs, and professional control. Suitable for demanding environments, it is perfect for professional applications illuminated by experience and reliability.
